master高可用集群——多master单node(Kubeadm）
安装k8s软件包
需要安装的软件包：
kubeadm(控制节点)：
kubelet：启动、删除pod的服务
kubectl：操作k8s资源、创建、删除、修改资源。
dnf install -y kubeadm kubelet kubectl
将kubelet设置开机自启
systemctl start kubelet && systemctl enable kubelet

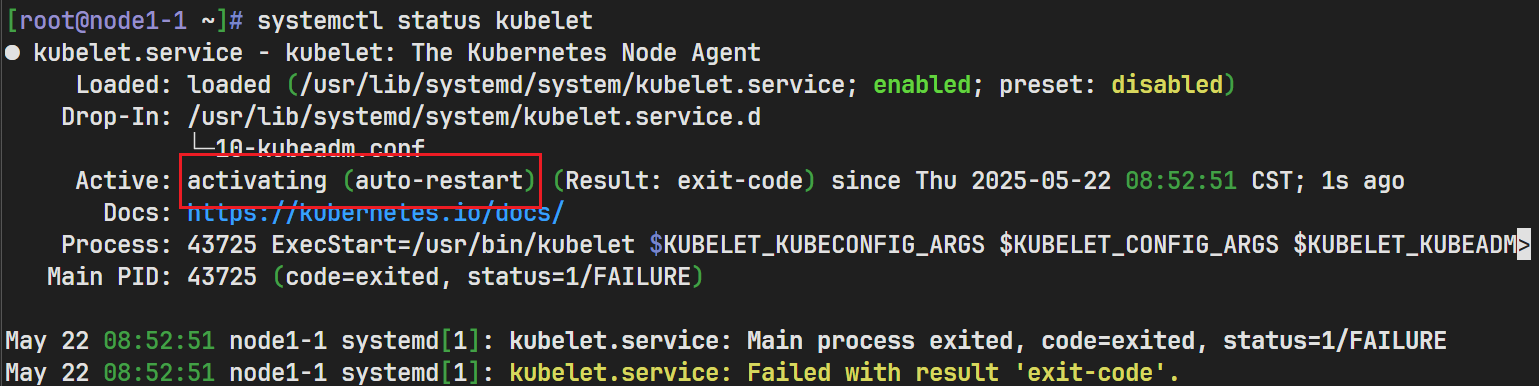

使用systemctl status kubelet 命令查看其状态是否为auto-restart
安装keepalive+nginx实现apiserver高可用
只需要在master节点安装即可，即master1-1和master1-2
dnf install -y nginx keepalived
在masster节点上做nginx的主备
修改nginx配置文件（主备一样）
编辑/etc/nginx/nginx.conf文件,实现四层负载均衡
user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;
include /usr/share/nginx/modules/*.conf;
events {
worker_connections 1024;
}
# 四层负载均衡，为两台Master apiserver组件提供负载均衡
stream {
log_format main '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';
access_log /var/log/nginx/k8s-access.log main;
upstream k8s-apiserver {
server 192.168.254.10:6443; # Master1-1 APISERVER IP:PORT 按需修改
server 192.168.254.11:6443; # Master1-2 APISERVER IP:PORT 按需修改
}
server {
listen 16443; # 由于nginx与master节点复用，这个监听端口不能是6443，否则会冲突
proxy_pass k8s-apiserver;
}
}
http {
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
types_hash_max_size 2048;
include /etc/nginx/mime.types;
default_type application/octet-stream;
server {
listen 80 default_server;
server_name _;
location / {
}
}
}
配置Keepalive
主Keepalived节点：master1-1
备Keepalived节点：master1-2
创建check_nginx.sh文件
vim /etc/keepalived/check_nginx.sh
#!/bin/bash
count=$( ps -ef | grep nginx |grep sbin | egrep -cv "grep|$$")
if [ $count -eq 0 ] ; then
systemctl stop keeplived
fi
这段脚本是检查nginx主进程是否存在的，如果不存在则停止掉keepadlived，ps -ef是列出所有的进程，grep nginx然后搜索包含nginx的进程，grep sbin在包含nginx的进程的结果中搜索包含sbin的进程（通常为主进程），egrep -cv "grep|$$"然后 过滤掉grep和当前脚本的进程，-c是行数，即进程数。
然后需要给该文件以执行权限
chmod +x /etc/keepalived/check_nginx.sh
主Keepalived节点
编辑/etc/keepalived/keepalived.conf文件
global_defs {
notification_email {
acassen@firewall.loc
failover@firewall.loc
sysadmin@firewall.loc
}
notification_email_from Alexandre.Cassen@firewall.loc
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id NGINX_MASTER
}
vrrp_script check_nginx {
script "/etc/keepalived/check_nginx.sh"
}
vrrp_instance VI_1 {
state MASTER
interface ens33 # 修改为实际网卡名
virtual_router_id 51 # VRRP 路由 ID实例，每个实例是唯一的
priority 100 # 优先级，备服务器设置 90
advert_int 1 # 指定VRRP 心跳包通告间隔时间，默认1秒
authentication {
auth_type PASS
auth_pass 1111
}
# 虚拟IP
virtual_ipaddress {
192.168.254.15/24 # 保证这个ip没有被其他机器使用
}
track_script {
check_nginx
}
}
备Keepalived节点
编辑/etc/keepalived/keepalived.conf文件，备keepalived节点的配置文件与主keepalived节点的基本相同，只需要修改state为BACKUP和优先级即可
global_defs {
notification_email {
acassen@firewall.loc
failover@firewall.loc
sysadmin@firewall.loc
}
notification_email_from Alexandre.Cassen@firewall.loc
smtp_server 127.0.0.1
smtp_connect_timeout 30
router_id NGINX_MASTER
}
vrrp_script check_nginx {
script "/etc/keepalived/check_nginx.sh"
}
vrrp_instance VI_1 {
state BACKUP
interface ens33 # 修改为实际网卡名
virtual_router_id 51 # VRRP 路由 ID实例，每个实例是唯一的
priority 90 # 优先级，备服务器设置 90
advert_int 1 # 指定VRRP 心跳包通告间隔时间，默认1秒
authentication {
auth_type PASS
auth_pass 1111
}
# 虚拟IP
virtual_ipaddress {
192.168.254.15/24 # 保证这个ip没有被其他机器使用
}
track_script {
check_nginx
}
}
重载配置并启动
在主备节点上都需要重载和启动
systemctl daemon-reload
⚠️先启动nginx，然后再启动keepalived，keepalived监测nginx
systemctl start nginx
systemctl start keepalived

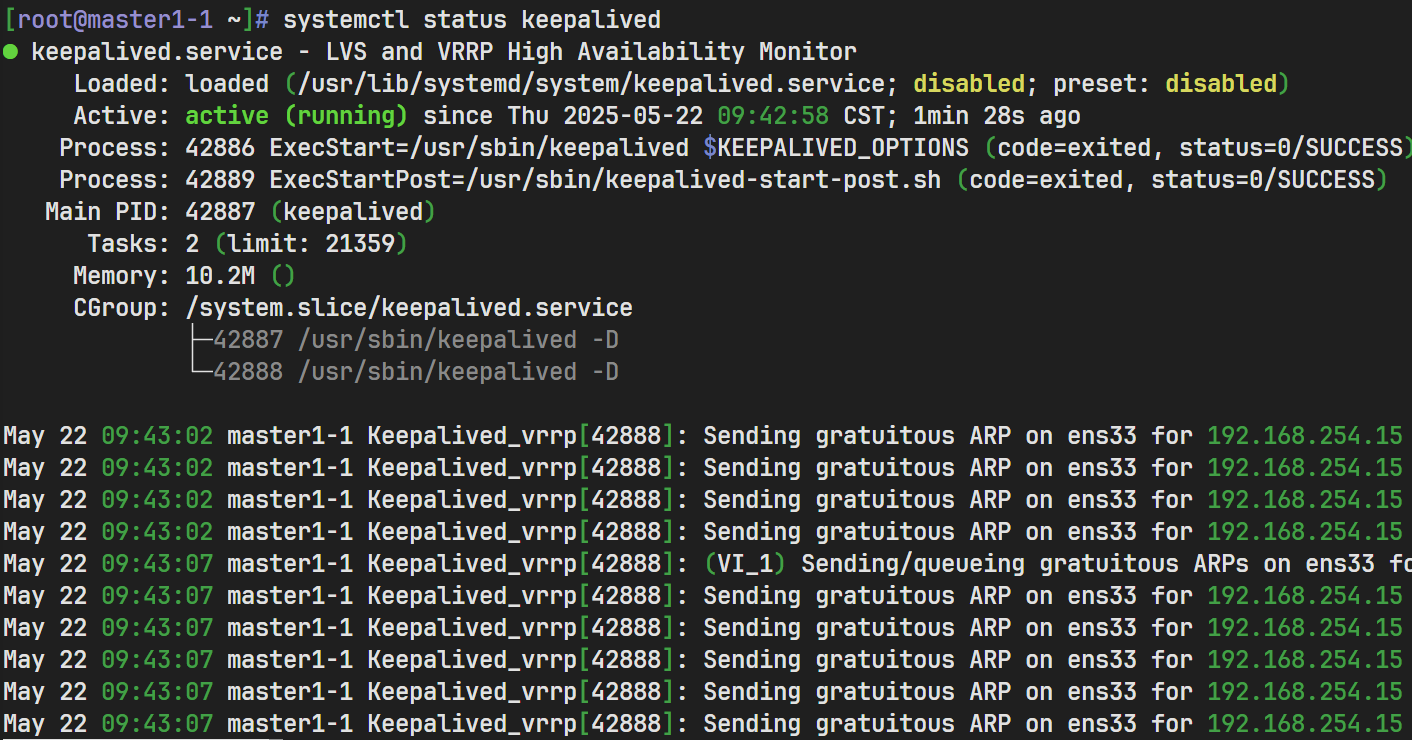

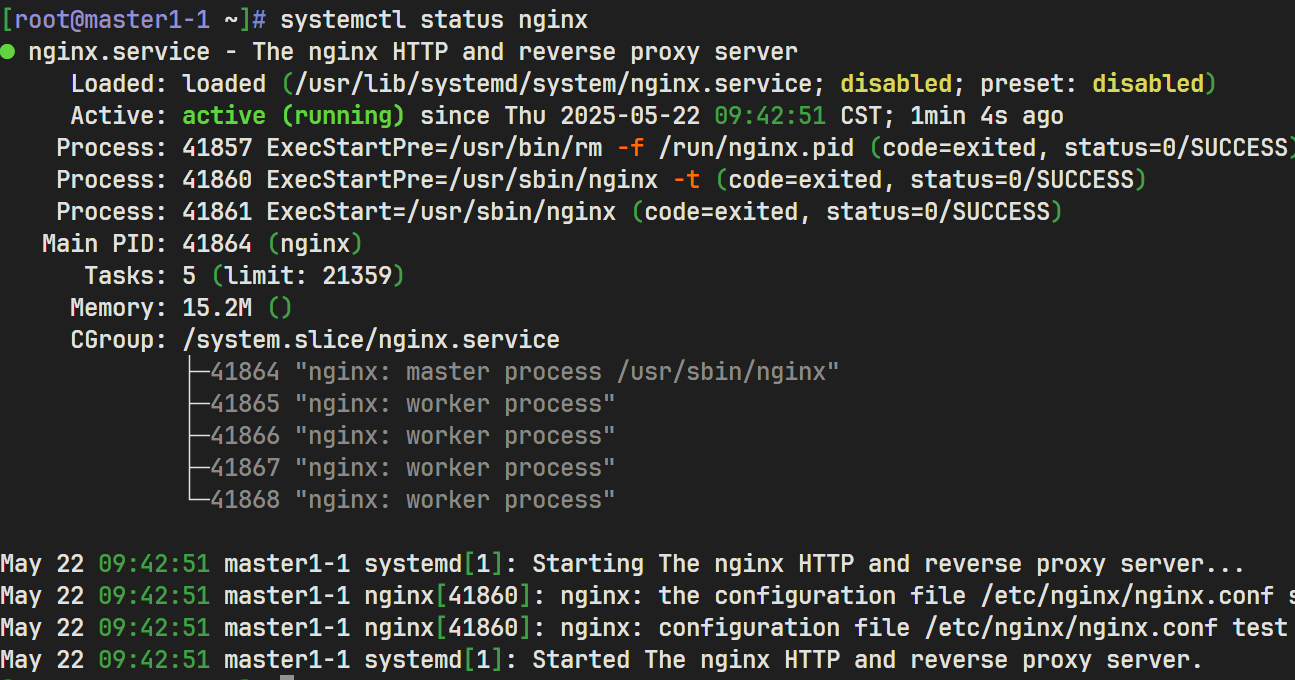

分别查看nginx和keepalived运行状态们如果为running即为正常
查看16443端口是否被监听
netstat -tupln | grep 16443
将nginx和keepalived配置开机自启
systemctl enable nginx keepalived

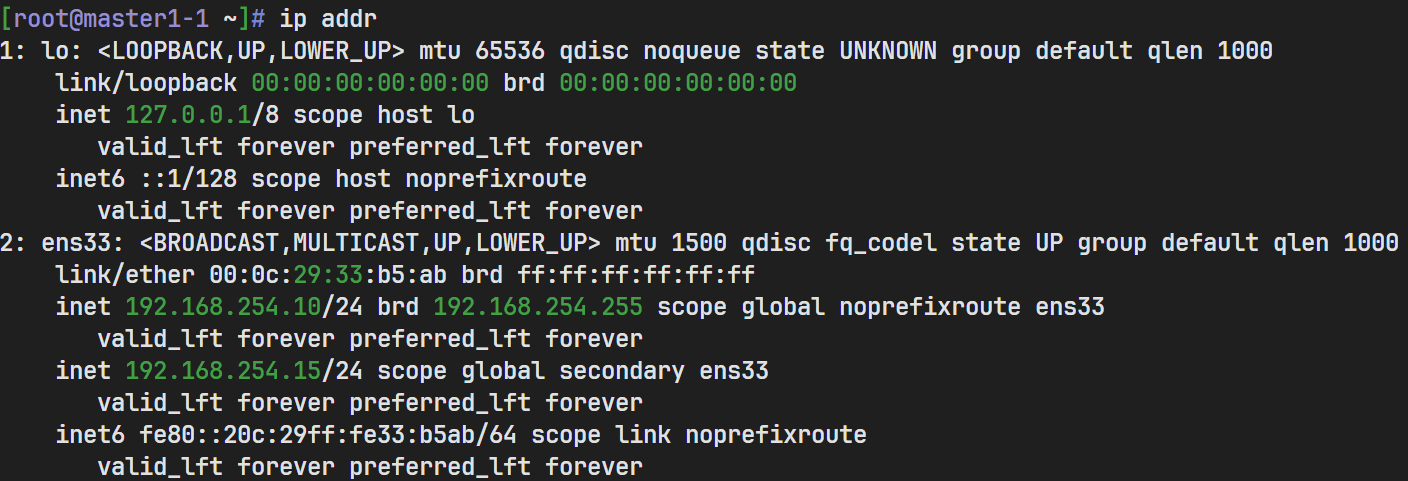

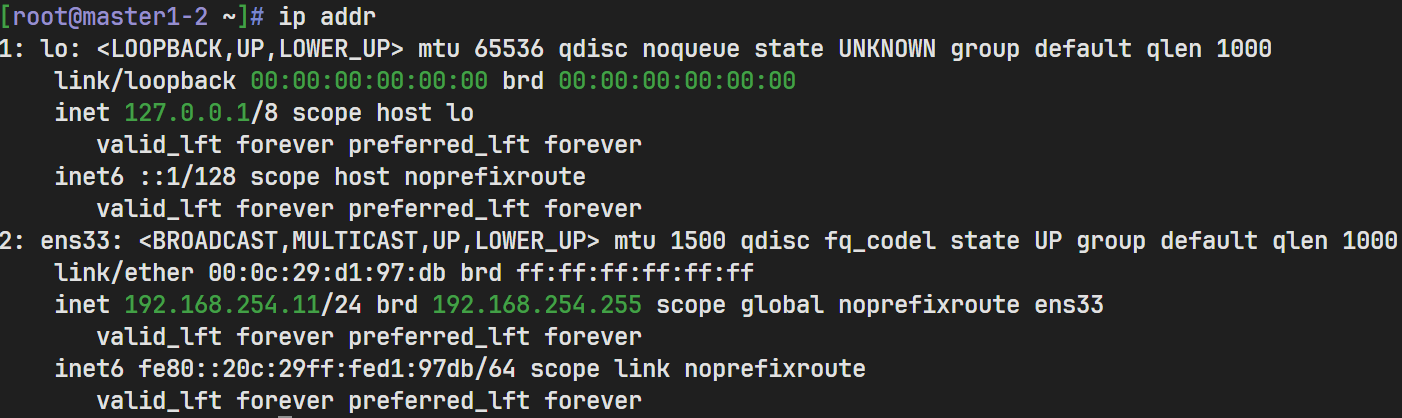

我们查看master1-1的ip addr可以看到vip（192.168.254.15）绑定在了ens33网卡上，而master1-2上只有一个ip(192.168.254.11)

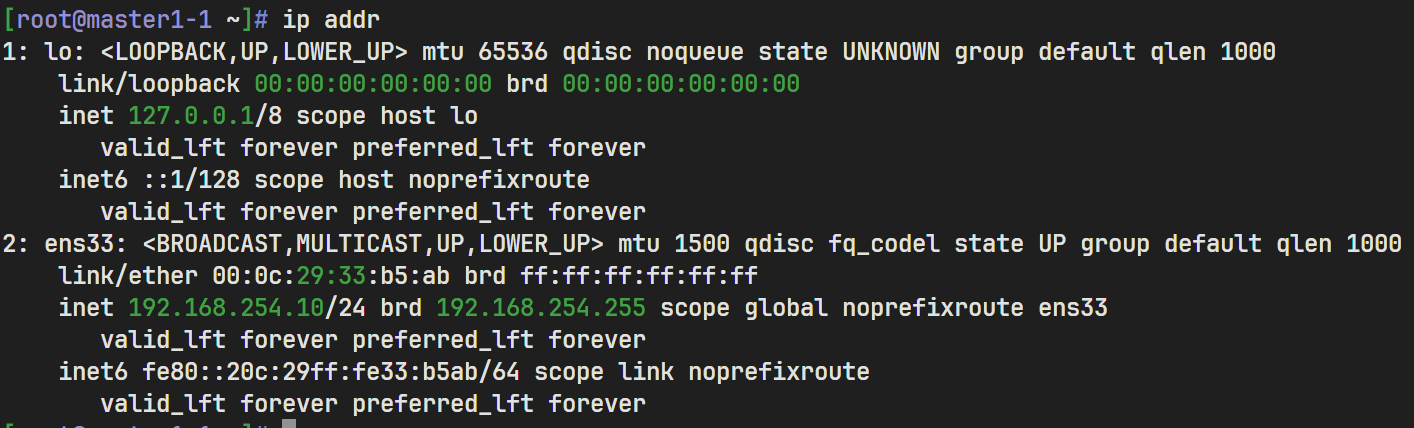

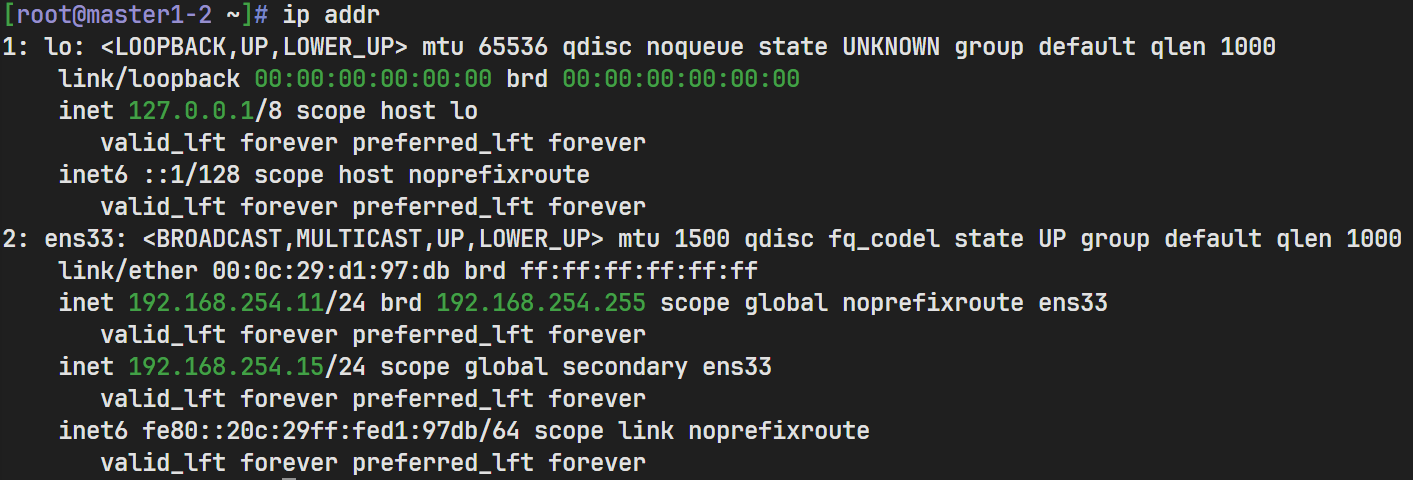

当我们手动停掉master1-1上的nginx服务时，vip会漂移到master1-2上，
systemctl stop nginx
当master1-1的nginx服务又启动时，vip又会回到master1-1上
kubeadm初始化k8s集群
配置kubeadm配置文件

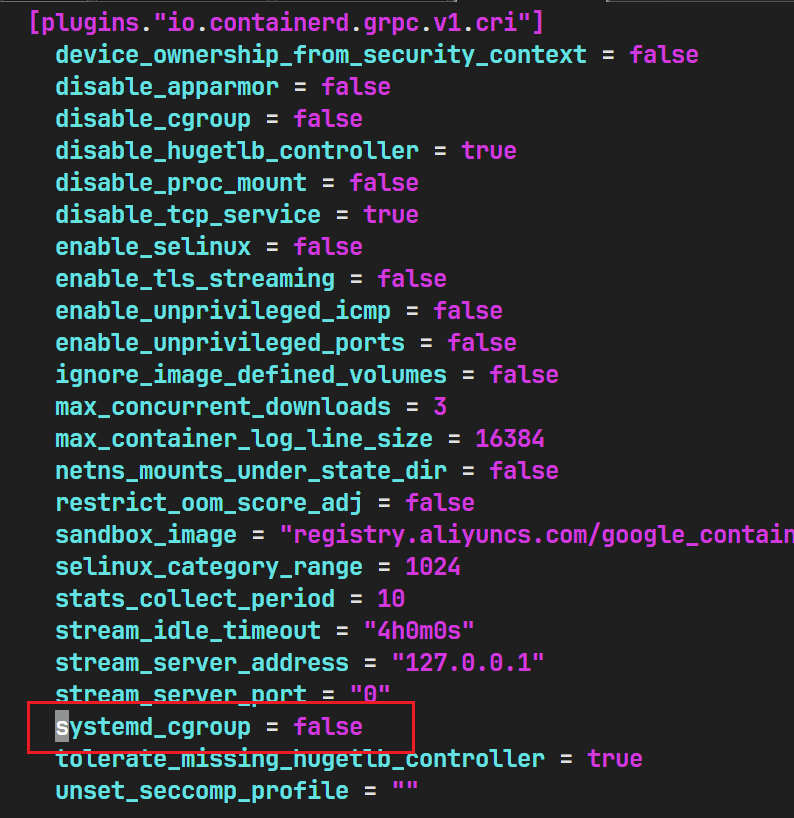

在msater1-1上新建一个kubeadm-config.yaml文件，imageRepository前提是要设置了containerd的镜像源，否则这里应该填入镜像源而不是k8s.gcr.io，例如imageRepository: registry.aliyuncs.com/google_containers
apiVersion: kubeadm.k8s.io/v1beta3
kind: ClusterConfiguration
kubernetesVersion: v1.28.2
controlPlaneEndpoint: 192.168.254.15:16443
imageRepository: registry.aliyuncs.com/google_containers
apiServer:
certSANs:
- 192.168.254.10
- 192.168.254.11
- 192.168.254.20
- 192.168.254.15
networking:
podSubnet: 10.244.0.0/16
serviceSubnet: 10.10.0.0/16
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: "systemd"
然后执行下面的命令初始化k8s集群
kubeadm init --config kubeadm-config.yaml
运行结果
[init] Using Kubernetes version: v1.28.2
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
W0522 15:15:01.879418 1530015 checks.go:835] detected that the sandbox image "registry.k8s.io/pause:3.6" of the container runtime is inconsistent with that used by kubeadm. It is recommended that using "registry.k8s.io/pause:3.9" as the CRI sandbox image.
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master1-1] and IPs [10.10.0.1 192.168.254.10 192.168.254.15 192.168.254.11 192.168.254.20]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [localhost master1-1] and IPs [192.168.254.10 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [localhost master1-1] and IPs [192.168.254.10 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
W0522 15:15:03.056968 1530015 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "admin.conf" kubeconfig file
W0522 15:15:03.189007 1530015 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "kubelet.conf" kubeconfig file
W0522 15:15:03.259781 1530015 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
W0522 15:15:03.319332 1530015 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 10.566685 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master1-1 as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node master1-1 as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: 661j2t.mdvm5bgdskg09mxo
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
W0522 15:15:18.073591 1530015 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:
kubeadm join 192.168.254.15:16443 --token 661j2t.mdvm5bgdskg09mxo \
--discovery-token-ca-cert-hash sha256:b0137974b62c72d5902e38384f188324af63d014aaaa3a309f6538484e4ab1a2 \
--control-plane
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.254.15:16443 --token 661j2t.mdvm5bgdskg09mxo \
--discovery-token-ca-cert-hash sha256:b0137974b62c72d5902e38384f188324af63d014aaaa3a309f6538484e4ab1a2
其中
[init] 整个初始化流程的入口,打印k8s的版本
[preflight] 阶段是在进行预检查操作，检查selinux、swap等有没有关闭和ipvs、br_netfilter等模块有没有被正常加载、检查网络连通性和拉取一些必要的镜像
[certs] 自动生成并签发各类 TLS 证书，并将这些证书存储到/etc/kubernetes/pki目录下
[kubeconfig] 为 admin.conf、kubelet.conf、controller-manager.conf、scheduler.conf 等生成或写入 kubeconfig 配置，确保各组件能相互认证和通信。
[etcd] 在 /etc/kubernetes/manifests/etcd.yaml 中写入 etcd Pod 定义，kubelet 会立刻以静态 Pod 启动 etcd。
[control-plane] 生成三个 manifest：kube-apiserver.yaml、kube-controller-manager.yaml、kube-scheduler.yaml，放到 /etc/kubernetes/manifests。kubelet 以静态pod启动三个组件。
[kubelet-start] 在 /var/lib/kubelet/kubeadm-flags.env 和 /var/lib/kubelet/config.yaml 写入必要配置，然后启动或重启 kubelet 进程。
[wait-control-plane] 等待 kubelet 将上述静态 Pod（etcd + 控制平面组件）都“就绪”，通过持续探测 API Server 的健康检查接口来判断控制平面是否可用。
[apiclient] 验证所有控制平面组件都在健康运行，确认集群 API 已就绪。
[upload-config] 将初始化时使用的配置上传到集群中。
[kubelet] 在 kube-system 下创建 kubelet-config ConfigMap，用来管理 kubelet 的配置。
[upload-certs] 在 kube-system 下创建一个 Secret 存储 CA、apiserver、etcd 证书等。
[mark-control-plane] 添加 labels node-role.kubernetes.io/control-plane 和 taints node-role.kubernetes.io/control-plane:NoSchedule，标识它是 Master 节点并阻止普通 Pod 调度到此节点。
[bootstrap-token] 生成一个短期 token，配置相应的 RBAC 规则和 cluster-info ConfigMap，供 kubeadm join 时发现和认证控制平面。
[kubelet-finalize] 修改 /etc/kubernetes/kubelet.conf，启用 kubelet 证书自动轮换功能。
[addons] 应用官方提供的 CoreDNS 和 kube-proxy YAML，保证集群 DNS 和网络代理功能可用。
运行结束后，会提供给我们几条命令，将其执行一下，/etc/kubernetes/admin.conf是认证授权的配置
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config
扩容节点时需要将master1-1上的ca证书拷贝到master1-2上才能执行下面的命令

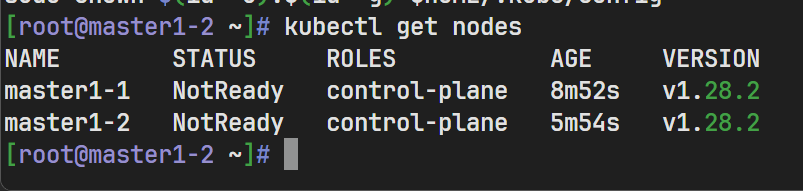

如果需要添加master节点，这些按照kubeadm打印的结果为准
kubeadm join 192.168.254.15:16443 --token 661j2t.mdvm5bgdskg09mxo \
--discovery-token-ca-cert-hash sha256:b0137974b62c72d5902e38384f188324af63d014aaaa3a309f6538484e4ab1a2 \
--control-plane

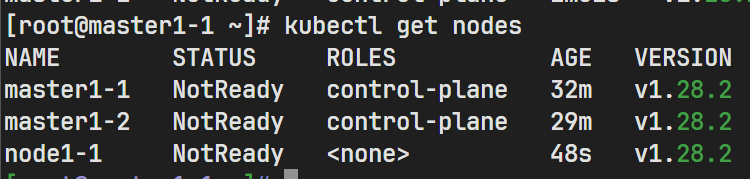

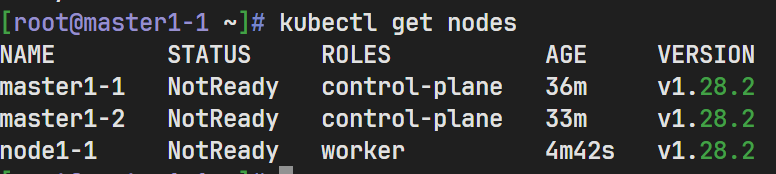

添加工作节点，按照kubeadm打印的结果为准
kubeadm join 192.168.254.15:16443 --token 661j2t.mdvm5bgdskg09mxo \
--discovery-token-ca-cert-hash sha256:b0137974b62c72d5902e38384f188324af63d014aaaa3a309f6538484e4ab1a2
🛡️初始化失败时清理残留（运行正常不要用）
kubeadm reset -f
rm -rf /etc/cni/net.d
rm -rf /var/lib/etcd
扩容k8s集群
扩容master节点
master1-1的证书
[root@master1-1 ~]# ll /etc/kubernetes/pki/
total 60
-rw-r--r-- 1 root root 1314 May 22 15:15 apiserver.crt
-rw-r--r-- 1 root root 1155 May 22 15:15 apiserver-etcd-client.crt
-rw------- 1 root root 1679 May 22 15:15 apiserver-etcd-client.key
-rw------- 1 root root 1679 May 22 15:15 apiserver.key
-rw-r--r-- 1 root root 1164 May 22 15:15 apiserver-kubelet-client.crt #kubectl通过apiserver向kubelet通信的证书
-rw------- 1 root root 1679 May 22 15:15 apiserver-kubelet-client.key #kubectl通过apiserver向kubelet通信的私钥
-rw-r--r-- 1 root root 1107 May 22 15:15 ca.crt
-rw------- 1 root root 1675 May 22 15:15 ca.key
drwxr-xr-x 2 root root 4096 May 22 15:15 etcd
-rw-r--r-- 1 root root 1123 May 22 15:15 front-proxy-ca.crt
-rw------- 1 root root 1675 May 22 15:15 front-proxy-ca.key
-rw-r--r-- 1 root root 1119 May 22 15:15 front-proxy-client.crt
-rw------- 1 root root 1675 May 22 15:15 front-proxy-client.key
-rw------- 1 root root 1675 May 22 15:15 sa.key
-rw------- 1 root root 451 May 22 15:15 sa.pub
拷贝ca证书至其他节点
在master1-2中创建证书目录
mkdir -p /etc/kubernetes/pki/etcd && mkdir -p ~/.kube/
拷贝操作,在master1-1上执行
scp /etc/kubernetes/pki/ca.crt master1-2:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/ca.key master1-2:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.key master1-2:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.pub master1-2:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.crt master1-2:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.key master1-2:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/etcd/ca.crt master1-2:/etc/kubernetes/pki/etcd/
scp /etc/kubernetes/pki/etcd/ca.key master1-2:/etc/kubernetes/pki/etcd/
然后在master1-2上执行上面kubeadm初始化完成后打印的命令将master1-2添加到集群中，如果忘记了也没事，可以在master1-1上使用
kubeadm token create --print-join-command
⚠️注意打印的命令如果是添加master节点，那么还需要添加--control-plane 参数
kubeadm join 192.168.254.15:16443 --token mrr4xg.b5cat7bs8c07p7sp \
--discovery-token-ca-cert-hash sha256:400a7b4f51a2cac84e957279f753d4acdbcfb02e61251feb99d50974fb8a0463 \
--control-plane
验证：
kubectl get nodes
NAME STATUS ROLES AGE VERSION
master1-1 NotReady control-plane 5m50s v1.28.2
master1-2 NotReady control-plane 2m52s v1.28.2
扩容node节点
加入node节点的命令和master的基本一样，只是不带--control-plane参数，添加node节点不需要传证书文件。
kubeadm join 192.168.254.15:16443 --token 8xe16h.6vv9wout231zksm1 \
--discovery-token-ca-cert-hash sha256:263c105eaffa025b4d8f088614ee25a0c5267dc4647f55d9cab2a9cbfa3e0cbe
在master节点时使用kubectl
kubectl get nodes
给工作节点打标签
kubectl label node node1-1 node-role.kubernetes.io/worker=worker
安装网络插件Calico
Calico本身是一个三层的虚拟网络方案，它将每个节点都当作路由器（router），将每个节点的容器都当作是“节点路由器”的一个终端并为其分配一个IP地址，各节点路由器通过BGP（Border Gateway Protocol）学习生成路由规则，从而将不同节点上的容器连接起来。因此，Calico方案其实是一个纯三层的解决方案，通过每个节点协议栈的三层（网络层）确保容器之间的连通性，这摆脱了flannel host-gw类型的所有节点必须位于同一二层网络的限制，从而极大地扩展了网络规模和网络边界。
创建calico.yaml文件，也可以从网络中拉取文件
wget https://docs.projectcalico.org/manifests/calico.yaml
---
# Source: calico/templates/calico-config.yaml
# This ConfigMap is used to configure a self-hosted Calico installation.
kind: ConfigMap
apiVersion: v1
metadata:
name: calico-config
namespace: kube-system
data:
# Typha is disabled.
typha_service_name: "none"
# Configure the backend to use.
calico_backend: "bird"
# Configure the MTU to use for workload interfaces and tunnels.
# By default, MTU is auto-detected, and explicitly setting this field should not be required.
# You can override auto-detection by providing a non-zero value.
veth_mtu: "0"
# The CNI network configuration to install on each node. The special
# values in this config will be automatically populated.
cni_network_config: |-
{
"name": "k8s-pod-network",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "calico",
"log_level": "info",
"log_file_path": "/var/log/calico/cni/cni.log",
"datastore_type": "kubernetes",
"nodename": "__KUBERNETES_NODE_NAME__",
"mtu": __CNI_MTU__,
"ipam": {
"type": "calico-ipam"
},
"policy": {
"type": "k8s"
},
"kubernetes": {
"kubeconfig": "__KUBECONFIG_FILEPATH__"
}
},
{
"type": "portmap",
"snat": true,
"capabilities": {"portMappings": true}
},
{
"type": "bandwidth",
"capabilities": {"bandwidth": true}
}
]
}
---
# Source: calico/templates/kdd-crds.yaml
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: bgpconfigurations.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: BGPConfiguration
listKind: BGPConfigurationList
plural: bgpconfigurations
singular: bgpconfiguration
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
description: BGPConfiguration contains the configuration for any BGP routing.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: BGPConfigurationSpec contains the values of the BGP configuration.
properties:
asNumber:
description: 'ASNumber is the default AS number used by a node. [Default:
64512]'
format: int32
type: integer
communities:
description: Communities is a list of BGP community values and their
arbitrary names for tagging routes.
items:
description: Community contains standard or large community value
and its name.
properties:
name:
description: Name given to community value.
type: string
value:
description: Value must be of format `aa:nn` or `aa:nn:mm`.
For standard community use `aa:nn` format, where `aa` and
`nn` are 16 bit number. For large community use `aa:nn:mm`
format, where `aa`, `nn` and `mm` are 32 bit number. Where,
`aa` is an AS Number, `nn` and `mm` are per-AS identifier.
pattern: ^(\d+):(\d+)$|^(\d+):(\d+):(\d+)$
type: string
type: object
type: array
listenPort:
description: ListenPort is the port where BGP protocol should listen.
Defaults to 179
maximum: 65535
minimum: 1
type: integer
logSeverityScreen:
description: 'LogSeverityScreen is the log severity above which logs
are sent to the stdout. [Default: INFO]'
type: string
nodeToNodeMeshEnabled:
description: 'NodeToNodeMeshEnabled sets whether full node to node
BGP mesh is enabled. [Default: true]'
type: boolean
prefixAdvertisements:
description: PrefixAdvertisements contains per-prefix advertisement
configuration.
items:
description: PrefixAdvertisement configures advertisement properties
for the specified CIDR.
properties:
cidr:
description: CIDR for which properties should be advertised.
type: string
communities:
description: Communities can be list of either community names
already defined in `Specs.Communities` or community value
of format `aa:nn` or `aa:nn:mm`. For standard community use
`aa:nn` format, where `aa` and `nn` are 16 bit number. For
large community use `aa:nn:mm` format, where `aa`, `nn` and
`mm` are 32 bit number. Where,`aa` is an AS Number, `nn` and
`mm` are per-AS identifier.
items:
type: string
type: array
type: object
type: array
serviceClusterIPs:
description: ServiceClusterIPs are the CIDR blocks from which service
cluster IPs are allocated. If specified, Calico will advertise these
blocks, as well as any cluster IPs within them.
items:
description: ServiceClusterIPBlock represents a single allowed ClusterIP
CIDR block.
properties:
cidr:
type: string
type: object
type: array
serviceExternalIPs:
description: ServiceExternalIPs are the CIDR blocks for Kubernetes
Service External IPs. Kubernetes Service ExternalIPs will only be
advertised if they are within one of these blocks.
items:
description: ServiceExternalIPBlock represents a single allowed
External IP CIDR block.
properties:
cidr:
type: string
type: object
type: array
serviceLoadBalancerIPs:
description: ServiceLoadBalancerIPs are the CIDR blocks for Kubernetes
Service LoadBalancer IPs. Kubernetes Service status.LoadBalancer.Ingress
IPs will only be advertised if they are within one of these blocks.
items:
description: ServiceLoadBalancerIPBlock represents a single allowed
LoadBalancer IP CIDR block.
properties:
cidr:
type: string
type: object
type: array
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: bgppeers.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: BGPPeer
listKind: BGPPeerList
plural: bgppeers
singular: bgppeer
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: BGPPeerSpec contains the specification for a BGPPeer resource.
properties:
asNumber:
description: The AS Number of the peer.
format: int32
type: integer
keepOriginalNextHop:
description: Option to keep the original nexthop field when routes
are sent to a BGP Peer. Setting "true" configures the selected BGP
Peers node to use the "next hop keep;" instead of "next hop self;"(default)
in the specific branch of the Node on "bird.cfg".
type: boolean
node:
description: The node name identifying the Calico node instance that
is targeted by this peer. If this is not set, and no nodeSelector
is specified, then this BGP peer selects all nodes in the cluster.
type: string
nodeSelector:
description: Selector for the nodes that should have this peering. When
this is set, the Node field must be empty.
type: string
password:
description: Optional BGP password for the peerings generated by this
BGPPeer resource.
properties:
secretKeyRef:
description: Selects a key of a secret in the node pod's namespace.
properties:
key:
description: The key of the secret to select from. Must be
a valid secret key.
type: string
name:
description: 'Name of the referent. More info: https://kubernetes.io/docs/concepts/overview/working-with-objects/names/#names
TODO: Add other useful fields. apiVersion, kind, uid?'
type: string
optional:
description: Specify whether the Secret or its key must be
defined
type: boolean
required:
- key
type: object
type: object
peerIP:
description: The IP address of the peer followed by an optional port
number to peer with. If port number is given, format should be `[<IPv6>]:port`
or `<IPv4>:<port>` for IPv4. If optional port number is not set,
and this peer IP and ASNumber belongs to a calico/node with ListenPort
set in BGPConfiguration, then we use that port to peer.
type: string
peerSelector:
description: Selector for the remote nodes to peer with. When this
is set, the PeerIP and ASNumber fields must be empty. For each
peering between the local node and selected remote nodes, we configure
an IPv4 peering if both ends have NodeBGPSpec.IPv4Address specified,
and an IPv6 peering if both ends have NodeBGPSpec.IPv6Address specified. The
remote AS number comes from the remote node's NodeBGPSpec.ASNumber,
or the global default if that is not set.
type: string
sourceAddress:
description: Specifies whether and how to configure a source address
for the peerings generated by this BGPPeer resource. Default value
"UseNodeIP" means to configure the node IP as the source address. "None"
means not to configure a source address.
type: string
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: blockaffinities.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: BlockAffinity
listKind: BlockAffinityList
plural: blockaffinities
singular: blockaffinity
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: BlockAffinitySpec contains the specification for a BlockAffinity
resource.
properties:
cidr:
type: string
deleted:
description: Deleted indicates that this block affinity is being deleted.
This field is a string for compatibility with older releases that
mistakenly treat this field as a string.
type: string
node:
type: string
state:
type: string
required:
- cidr
- deleted
- node
- state
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: clusterinformations.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: ClusterInformation
listKind: ClusterInformationList
plural: clusterinformations
singular: clusterinformation
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
description: ClusterInformation contains the cluster specific information.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: ClusterInformationSpec contains the values of describing
the cluster.
properties:
calicoVersion:
description: CalicoVersion is the version of Calico that the cluster
is running
type: string
clusterGUID:
description: ClusterGUID is the GUID of the cluster
type: string
clusterType:
description: ClusterType describes the type of the cluster
type: string
datastoreReady:
description: DatastoreReady is used during significant datastore migrations
to signal to components such as Felix that it should wait before
accessing the datastore.
type: boolean
variant:
description: Variant declares which variant of Calico should be active.
type: string
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: felixconfigurations.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: FelixConfiguration
listKind: FelixConfigurationList
plural: felixconfigurations
singular: felixconfiguration
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
description: Felix Configuration contains the configuration for Felix.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: FelixConfigurationSpec contains the values of the Felix configuration.
properties:
allowIPIPPacketsFromWorkloads:
description: 'AllowIPIPPacketsFromWorkloads controls whether Felix
will add a rule to drop IPIP encapsulated traffic from workloads
[Default: false]'
type: boolean
allowVXLANPacketsFromWorkloads:
description: 'AllowVXLANPacketsFromWorkloads controls whether Felix
will add a rule to drop VXLAN encapsulated traffic from workloads
[Default: false]'
type: boolean
awsSrcDstCheck:
description: 'Set source-destination-check on AWS EC2 instances. Accepted
value must be one of "DoNothing", "Enabled" or "Disabled". [Default:
DoNothing]'
enum:
- DoNothing
- Enable
- Disable
type: string
bpfConnectTimeLoadBalancingEnabled:
description: 'BPFConnectTimeLoadBalancingEnabled when in BPF mode,
controls whether Felix installs the connection-time load balancer. The
connect-time load balancer is required for the host to be able to
reach Kubernetes services and it improves the performance of pod-to-service
connections. The only reason to disable it is for debugging purposes. [Default:
true]'
type: boolean
bpfDataIfacePattern:
description: BPFDataIfacePattern is a regular expression that controls
which interfaces Felix should attach BPF programs to in order to
catch traffic to/from the network. This needs to match the interfaces
that Calico workload traffic flows over as well as any interfaces
that handle incoming traffic to nodeports and services from outside
the cluster. It should not match the workload interfaces (usually
named cali...).
type: string
bpfDisableUnprivileged:
description: 'BPFDisableUnprivileged, if enabled, Felix sets the kernel.unprivileged_bpf_disabled
sysctl to disable unprivileged use of BPF. This ensures that unprivileged
users cannot access Calico''s BPF maps and cannot insert their own
BPF programs to interfere with Calico''s. [Default: true]'
type: boolean
bpfEnabled:
description: 'BPFEnabled, if enabled Felix will use the BPF dataplane.
[Default: false]'
type: boolean
bpfExternalServiceMode:
description: 'BPFExternalServiceMode in BPF mode, controls how connections
from outside the cluster to services (node ports and cluster IPs)
are forwarded to remote workloads. If set to "Tunnel" then both
request and response traffic is tunneled to the remote node. If
set to "DSR", the request traffic is tunneled but the response traffic
is sent directly from the remote node. In "DSR" mode, the remote
node appears to use the IP of the ingress node; this requires a
permissive L2 network. [Default: Tunnel]'
type: string
bpfKubeProxyEndpointSlicesEnabled:
description: BPFKubeProxyEndpointSlicesEnabled in BPF mode, controls
whether Felix's embedded kube-proxy accepts EndpointSlices or not.
type: boolean
bpfKubeProxyIptablesCleanupEnabled:
description: 'BPFKubeProxyIptablesCleanupEnabled, if enabled in BPF
mode, Felix will proactively clean up the upstream Kubernetes kube-proxy''s
iptables chains. Should only be enabled if kube-proxy is not running. [Default:
true]'
type: boolean
bpfKubeProxyMinSyncPeriod:
description: 'BPFKubeProxyMinSyncPeriod, in BPF mode, controls the
minimum time between updates to the dataplane for Felix''s embedded
kube-proxy. Lower values give reduced set-up latency. Higher values
reduce Felix CPU usage by batching up more work. [Default: 1s]'
type: string
bpfLogLevel:
description: 'BPFLogLevel controls the log level of the BPF programs
when in BPF dataplane mode. One of "Off", "Info", or "Debug". The
logs are emitted to the BPF trace pipe, accessible with the command
`tc exec bpf debug`. [Default: Off].'
type: string
chainInsertMode:
description: 'ChainInsertMode controls whether Felix hooks the kernel''s
top-level iptables chains by inserting a rule at the top of the
chain or by appending a rule at the bottom. insert is the safe default
since it prevents Calico''s rules from being bypassed. If you switch
to append mode, be sure that the other rules in the chains signal
acceptance by falling through to the Calico rules, otherwise the
Calico policy will be bypassed. [Default: insert]'
type: string
dataplaneDriver:
type: string
debugDisableLogDropping:
type: boolean
debugMemoryProfilePath:
type: string
debugSimulateCalcGraphHangAfter:
type: string
debugSimulateDataplaneHangAfter:
type: string
defaultEndpointToHostAction:
description: 'DefaultEndpointToHostAction controls what happens to
traffic that goes from a workload endpoint to the host itself (after
the traffic hits the endpoint egress policy). By default Calico
blocks traffic from workload endpoints to the host itself with an
iptables "DROP" action. If you want to allow some or all traffic
from endpoint to host, set this parameter to RETURN or ACCEPT. Use
RETURN if you have your own rules in the iptables "INPUT" chain;
Calico will insert its rules at the top of that chain, then "RETURN"
packets to the "INPUT" chain once it has completed processing workload
endpoint egress policy. Use ACCEPT to unconditionally accept packets
from workloads after processing workload endpoint egress policy.
[Default: Drop]'
type: string
deviceRouteProtocol:
description: This defines the route protocol added to programmed device
routes, by default this will be RTPROT_BOOT when left blank.
type: integer
deviceRouteSourceAddress:
description: This is the source address to use on programmed device
routes. By default the source address is left blank, leaving the
kernel to choose the source address used.
type: string
disableConntrackInvalidCheck:
type: boolean
endpointReportingDelay:
type: string
endpointReportingEnabled:
type: boolean
externalNodesList:
description: ExternalNodesCIDRList is a list of CIDR's of external-non-calico-nodes
which may source tunnel traffic and have the tunneled traffic be
accepted at calico nodes.
items:
type: string
type: array
failsafeInboundHostPorts:
description: 'FailsafeInboundHostPorts is a comma-delimited list of
UDP/TCP ports that Felix will allow incoming traffic to host endpoints
on irrespective of the security policy. This is useful to avoid
accidentally cutting off a host with incorrect configuration. Each
port should be specified as tcp:<port-number> or udp:<port-number>.
For back-compatibility, if the protocol is not specified, it defaults
to "tcp". To disable all inbound host ports, use the value none.
The default value allows ssh access and DHCP. [Default: tcp:22,
udp:68, tcp:179, tcp:2379, tcp:2380, tcp:6443, tcp:6666, tcp:6667]'
items:
description: ProtoPort is combination of protocol and port, both
must be specified.
properties:
port:
type: integer
protocol:
type: string
required:
- port
- protocol
type: object
type: array
failsafeOutboundHostPorts:
description: 'FailsafeOutboundHostPorts is a comma-delimited list
of UDP/TCP ports that Felix will allow outgoing traffic from host
endpoints to irrespective of the security policy. This is useful
to avoid accidentally cutting off a host with incorrect configuration.
Each port should be specified as tcp:<port-number> or udp:<port-number>.
For back-compatibility, if the protocol is not specified, it defaults
to "tcp". To disable all outbound host ports, use the value none.
The default value opens etcd''s standard ports to ensure that Felix
does not get cut off from etcd as well as allowing DHCP and DNS.
[Default: tcp:179, tcp:2379, tcp:2380, tcp:6443, tcp:6666, tcp:6667,
udp:53, udp:67]'
items:
description: ProtoPort is combination of protocol and port, both
must be specified.
properties:
port:
type: integer
protocol:
type: string
required:
- port
- protocol
type: object
type: array
featureDetectOverride:
description: FeatureDetectOverride is used to override the feature
detection. Values are specified in a comma separated list with no
spaces, example; "SNATFullyRandom=true,MASQFullyRandom=false,RestoreSupportsLock=".
"true" or "false" will force the feature, empty or omitted values
are auto-detected.
type: string
genericXDPEnabled:
description: 'GenericXDPEnabled enables Generic XDP so network cards
that don''t support XDP offload or driver modes can use XDP. This
is not recommended since it doesn''t provide better performance
than iptables. [Default: false]'
type: boolean
healthEnabled:
type: boolean
healthHost:
type: string
healthPort:
type: integer
interfaceExclude:
description: 'InterfaceExclude is a comma-separated list of interfaces
that Felix should exclude when monitoring for host endpoints. The
default value ensures that Felix ignores Kubernetes'' IPVS dummy
interface, which is used internally by kube-proxy. If you want to
exclude multiple interface names using a single value, the list
supports regular expressions. For regular expressions you must wrap
the value with ''/''. For example having values ''/^kube/,veth1''
will exclude all interfaces that begin with ''kube'' and also the
interface ''veth1''. [Default: kube-ipvs0]'
type: string
interfacePrefix:
description: 'InterfacePrefix is the interface name prefix that identifies
workload endpoints and so distinguishes them from host endpoint
interfaces. Note: in environments other than bare metal, the orchestrators
configure this appropriately. For example our Kubernetes and Docker
integrations set the ''cali'' value, and our OpenStack integration
sets the ''tap'' value. [Default: cali]'
type: string
interfaceRefreshInterval:
description: InterfaceRefreshInterval is the period at which Felix
rescans local interfaces to verify their state. The rescan can be
disabled by setting the interval to 0.
type: string
ipipEnabled:
type: boolean
ipipMTU:
description: 'IPIPMTU is the MTU to set on the tunnel device. See
Configuring MTU [Default: 1440]'
type: integer
ipsetsRefreshInterval:
description: 'IpsetsRefreshInterval is the period at which Felix re-checks
all iptables state to ensure that no other process has accidentally
broken Calico''s rules. Set to 0 to disable iptables refresh. [Default:
90s]'
type: string
iptablesBackend:
description: IptablesBackend specifies which backend of iptables will
be used. The default is legacy.
type: string
iptablesFilterAllowAction:
type: string
iptablesLockFilePath:
description: 'IptablesLockFilePath is the location of the iptables
lock file. You may need to change this if the lock file is not in
its standard location (for example if you have mapped it into Felix''s
container at a different path). [Default: /run/xtables.lock]'
type: string
iptablesLockProbeInterval:
description: 'IptablesLockProbeInterval is the time that Felix will
wait between attempts to acquire the iptables lock if it is not
available. Lower values make Felix more responsive when the lock
is contended, but use more CPU. [Default: 50ms]'
type: string
iptablesLockTimeout:
description: 'IptablesLockTimeout is the time that Felix will wait
for the iptables lock, or 0, to disable. To use this feature, Felix
must share the iptables lock file with all other processes that
also take the lock. When running Felix inside a container, this
requires the /run directory of the host to be mounted into the calico/node
or calico/felix container. [Default: 0s disabled]'
type: string
iptablesMangleAllowAction:
type: string
iptablesMarkMask:
description: 'IptablesMarkMask is the mask that Felix selects its
IPTables Mark bits from. Should be a 32 bit hexadecimal number with
at least 8 bits set, none of which clash with any other mark bits
in use on the system. [Default: 0xff000000]'
format: int32
type: integer
iptablesNATOutgoingInterfaceFilter:
type: string
iptablesPostWriteCheckInterval:
description: 'IptablesPostWriteCheckInterval is the period after Felix
has done a write to the dataplane that it schedules an extra read
back in order to check the write was not clobbered by another process.
This should only occur if another application on the system doesn''t
respect the iptables lock. [Default: 1s]'
type: string
iptablesRefreshInterval:
description: 'IptablesRefreshInterval is the period at which Felix
re-checks the IP sets in the dataplane to ensure that no other process
has accidentally broken Calico''s rules. Set to 0 to disable IP
sets refresh. Note: the default for this value is lower than the
other refresh intervals as a workaround for a Linux kernel bug that
was fixed in kernel version 4.11. If you are using v4.11 or greater
you may want to set this to, a higher value to reduce Felix CPU
usage. [Default: 10s]'
type: string
ipv6Support:
type: boolean
kubeNodePortRanges:
description: 'KubeNodePortRanges holds list of port ranges used for
service node ports. Only used if felix detects kube-proxy running
in ipvs mode. Felix uses these ranges to separate host and workload
traffic. [Default: 30000:32767].'
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
logFilePath:
description: 'LogFilePath is the full path to the Felix log. Set to
none to disable file logging. [Default: /var/log/calico/felix.log]'
type: string
logPrefix:
description: 'LogPrefix is the log prefix that Felix uses when rendering
LOG rules. [Default: calico-packet]'
type: string
logSeverityFile:
description: 'LogSeverityFile is the log severity above which logs
are sent to the log file. [Default: Info]'
type: string
logSeverityScreen:
description: 'LogSeverityScreen is the log severity above which logs
are sent to the stdout. [Default: Info]'
type: string
logSeveritySys:
description: 'LogSeveritySys is the log severity above which logs
are sent to the syslog. Set to None for no logging to syslog. [Default:
Info]'
type: string
maxIpsetSize:
type: integer
metadataAddr:
description: 'MetadataAddr is the IP address or domain name of the
server that can answer VM queries for cloud-init metadata. In OpenStack,
this corresponds to the machine running nova-api (or in Ubuntu,
nova-api-metadata). A value of none (case insensitive) means that
Felix should not set up any NAT rule for the metadata path. [Default:
127.0.0.1]'
type: string
metadataPort:
description: 'MetadataPort is the port of the metadata server. This,
combined with global.MetadataAddr (if not ''None''), is used to
set up a NAT rule, from 169.254.169.254:80 to MetadataAddr:MetadataPort.
In most cases this should not need to be changed [Default: 8775].'
type: integer
mtuIfacePattern:
description: MTUIfacePattern is a regular expression that controls
which interfaces Felix should scan in order to calculate the host's
MTU. This should not match workload interfaces (usually named cali...).
type: string
natOutgoingAddress:
description: NATOutgoingAddress specifies an address to use when performing
source NAT for traffic in a natOutgoing pool that is leaving the
network. By default the address used is an address on the interface
the traffic is leaving on (ie it uses the iptables MASQUERADE target)
type: string
natPortRange:
anyOf:
- type: integer
- type: string
description: NATPortRange specifies the range of ports that is used
for port mapping when doing outgoing NAT. When unset the default
behavior of the network stack is used.
pattern: ^.*
x-kubernetes-int-or-string: true
netlinkTimeout:
type: string
openstackRegion:
description: 'OpenstackRegion is the name of the region that a particular
Felix belongs to. In a multi-region Calico/OpenStack deployment,
this must be configured somehow for each Felix (here in the datamodel,
or in felix.cfg or the environment on each compute node), and must
match the [calico] openstack_region value configured in neutron.conf
on each node. [Default: Empty]'
type: string
policySyncPathPrefix:
description: 'PolicySyncPathPrefix is used to by Felix to communicate
policy changes to external services, like Application layer policy.
[Default: Empty]'
type: string
prometheusGoMetricsEnabled:
description: 'PrometheusGoMetricsEnabled disables Go runtime metrics
collection, which the Prometheus client does by default, when set
to false. This reduces the number of metrics reported, reducing
Prometheus load. [Default: true]'
type: boolean
prometheusMetricsEnabled:
description: 'PrometheusMetricsEnabled enables the Prometheus metrics
server in Felix if set to true. [Default: false]'
type: boolean
prometheusMetricsHost:
description: 'PrometheusMetricsHost is the host that the Prometheus
metrics server should bind to. [Default: empty]'
type: string
prometheusMetricsPort:
description: 'PrometheusMetricsPort is the TCP port that the Prometheus
metrics server should bind to. [Default: 9091]'
type: integer
prometheusProcessMetricsEnabled:
description: 'PrometheusProcessMetricsEnabled disables process metrics
collection, which the Prometheus client does by default, when set
to false. This reduces the number of metrics reported, reducing
Prometheus load. [Default: true]'
type: boolean
removeExternalRoutes:
description: Whether or not to remove device routes that have not
been programmed by Felix. Disabling this will allow external applications
to also add device routes. This is enabled by default which means
we will remove externally added routes.
type: boolean
reportingInterval:
description: 'ReportingInterval is the interval at which Felix reports
its status into the datastore or 0 to disable. Must be non-zero
in OpenStack deployments. [Default: 30s]'
type: string
reportingTTL:
description: 'ReportingTTL is the time-to-live setting for process-wide
status reports. [Default: 90s]'
type: string
routeRefreshInterval:
description: 'RouteRefreshInterval is the period at which Felix re-checks
the routes in the dataplane to ensure that no other process has
accidentally broken Calico''s rules. Set to 0 to disable route refresh.
[Default: 90s]'
type: string
routeSource:
description: 'RouteSource configures where Felix gets its routing
information. - WorkloadIPs: use workload endpoints to construct
routes. - CalicoIPAM: the default - use IPAM data to construct routes.'
type: string
routeTableRange:
description: Calico programs additional Linux route tables for various
purposes. RouteTableRange specifies the indices of the route tables
that Calico should use.
properties:
max:
type: integer
min:
type: integer
required:
- max
- min
type: object
serviceLoopPrevention:
description: 'When service IP advertisement is enabled, prevent routing
loops to service IPs that are not in use, by dropping or rejecting
packets that do not get DNAT''d by kube-proxy. Unless set to "Disabled",
in which case such routing loops continue to be allowed. [Default:
Drop]'
type: string
sidecarAccelerationEnabled:
description: 'SidecarAccelerationEnabled enables experimental sidecar
acceleration [Default: false]'
type: boolean
usageReportingEnabled:
description: 'UsageReportingEnabled reports anonymous Calico version
number and cluster size to projectcalico.org. Logs warnings returned
by the usage server. For example, if a significant security vulnerability
has been discovered in the version of Calico being used. [Default:
true]'
type: boolean
usageReportingInitialDelay:
description: 'UsageReportingInitialDelay controls the minimum delay
before Felix makes a report. [Default: 300s]'
type: string
usageReportingInterval:
description: 'UsageReportingInterval controls the interval at which
Felix makes reports. [Default: 86400s]'
type: string
useInternalDataplaneDriver:
type: boolean
vxlanEnabled:
type: boolean
vxlanMTU:
description: 'VXLANMTU is the MTU to set on the tunnel device. See
Configuring MTU [Default: 1440]'
type: integer
vxlanPort:
type: integer
vxlanVNI:
type: integer
wireguardEnabled:
description: 'WireguardEnabled controls whether Wireguard is enabled.
[Default: false]'
type: boolean
wireguardInterfaceName:
description: 'WireguardInterfaceName specifies the name to use for
the Wireguard interface. [Default: wg.calico]'
type: string
wireguardListeningPort:
description: 'WireguardListeningPort controls the listening port used
by Wireguard. [Default: 51820]'
type: integer
wireguardMTU:
description: 'WireguardMTU controls the MTU on the Wireguard interface.
See Configuring MTU [Default: 1420]'
type: integer
wireguardRoutingRulePriority:
description: 'WireguardRoutingRulePriority controls the priority value
to use for the Wireguard routing rule. [Default: 99]'
type: integer
xdpEnabled:
description: 'XDPEnabled enables XDP acceleration for suitable untracked
incoming deny rules. [Default: true]'
type: boolean
xdpRefreshInterval:
description: 'XDPRefreshInterval is the period at which Felix re-checks
all XDP state to ensure that no other process has accidentally broken
Calico''s BPF maps or attached programs. Set to 0 to disable XDP
refresh. [Default: 90s]'
type: string
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: globalnetworkpolicies.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: GlobalNetworkPolicy
listKind: GlobalNetworkPolicyList
plural: globalnetworkpolicies
singular: globalnetworkpolicy
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
properties:
applyOnForward:
description: ApplyOnForward indicates to apply the rules in this policy
on forward traffic.
type: boolean
doNotTrack:
description: DoNotTrack indicates whether packets matched by the rules
in this policy should go through the data plane's connection tracking,
such as Linux conntrack. If True, the rules in this policy are
applied before any data plane connection tracking, and packets allowed
by this policy are marked as not to be tracked.
type: boolean
egress:
description: The ordered set of egress rules. Each rule contains
a set of packet match criteria and a corresponding action to apply.
items:
description: "A Rule encapsulates a set of match criteria and an
action. Both selector-based security Policy and security Profiles
reference rules - separated out as a list of rules for both ingress
and egress packet matching. \n Each positive match criteria has
a negated version, prefixed with \"Not\". All the match criteria
within a rule must be satisfied for a packet to match. A single
rule can contain the positive and negative version of a match
and both must be satisfied for the rule to match."
properties:
action:
type: string
destination:
description: Destination contains the match criteria that apply
to destination entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
http:
description: HTTP contains match criteria that apply to HTTP
requests.
properties:
methods:
description: Methods is an optional field that restricts
the rule to apply only to HTTP requests that use one of
the listed HTTP Methods (e.g. GET, PUT, etc.) Multiple
methods are OR'd together.
items:
type: string
type: array
paths:
description: 'Paths is an optional field that restricts
the rule to apply to HTTP requests that use one of the
listed HTTP Paths. Multiple paths are OR''d together.
e.g: - exact: /foo - prefix: /bar NOTE: Each entry may
ONLY specify either a `exact` or a `prefix` match. The
validator will check for it.'
items:
description: 'HTTPPath specifies an HTTP path to match.
It may be either of the form: exact: <path>: which matches
the path exactly or prefix: <path-prefix>: which matches
the path prefix'
properties:
exact:
type: string
prefix:
type: string
type: object
type: array
type: object
icmp:
description: ICMP is an optional field that restricts the rule
to apply to a specific type and code of ICMP traffic. This
should only be specified if the Protocol field is set to "ICMP"
or "ICMPv6".
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
ipVersion:
description: IPVersion is an optional field that restricts the
rule to only match a specific IP version.
type: integer
metadata:
description: Metadata contains additional information for this
rule
properties:
annotations:
additionalProperties:
type: string
description: Annotations is a set of key value pairs that
give extra information about the rule
type: object
type: object
notICMP:
description: NotICMP is the negated version of the ICMP field.
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
notProtocol:
anyOf:
- type: integer
- type: string
description: NotProtocol is the negated version of the Protocol
field.
pattern: ^.*
x-kubernetes-int-or-string: true
protocol:
anyOf:
- type: integer
- type: string
description: "Protocol is an optional field that restricts the
rule to only apply to traffic of a specific IP protocol. Required
if any of the EntityRules contain Ports (because ports only
apply to certain protocols). \n Must be one of these string
values: \"TCP\", \"UDP\", \"ICMP\", \"ICMPv6\", \"SCTP\",
\"UDPLite\" or an integer in the range 1-255."
pattern: ^.*
x-kubernetes-int-or-string: true
source:
description: Source contains the match criteria that apply to
source entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
required:
- action
type: object
type: array
ingress:
description: The ordered set of ingress rules. Each rule contains
a set of packet match criteria and a corresponding action to apply.
items:
description: "A Rule encapsulates a set of match criteria and an
action. Both selector-based security Policy and security Profiles
reference rules - separated out as a list of rules for both ingress
and egress packet matching. \n Each positive match criteria has
a negated version, prefixed with \"Not\". All the match criteria
within a rule must be satisfied for a packet to match. A single
rule can contain the positive and negative version of a match
and both must be satisfied for the rule to match."
properties:
action:
type: string
destination:
description: Destination contains the match criteria that apply
to destination entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
http:
description: HTTP contains match criteria that apply to HTTP
requests.
properties:
methods:
description: Methods is an optional field that restricts
the rule to apply only to HTTP requests that use one of
the listed HTTP Methods (e.g. GET, PUT, etc.) Multiple
methods are OR'd together.
items:
type: string
type: array
paths:
description: 'Paths is an optional field that restricts
the rule to apply to HTTP requests that use one of the
listed HTTP Paths. Multiple paths are OR''d together.
e.g: - exact: /foo - prefix: /bar NOTE: Each entry may
ONLY specify either a `exact` or a `prefix` match. The
validator will check for it.'
items:
description: 'HTTPPath specifies an HTTP path to match.
It may be either of the form: exact: <path>: which matches
the path exactly or prefix: <path-prefix>: which matches
the path prefix'
properties:
exact:
type: string
prefix:
type: string
type: object
type: array
type: object
icmp:
description: ICMP is an optional field that restricts the rule
to apply to a specific type and code of ICMP traffic. This
should only be specified if the Protocol field is set to "ICMP"
or "ICMPv6".
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
ipVersion:
description: IPVersion is an optional field that restricts the
rule to only match a specific IP version.
type: integer
metadata:
description: Metadata contains additional information for this
rule
properties:
annotations:
additionalProperties:
type: string
description: Annotations is a set of key value pairs that
give extra information about the rule
type: object
type: object
notICMP:
description: NotICMP is the negated version of the ICMP field.
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
notProtocol:
anyOf:
- type: integer
- type: string
description: NotProtocol is the negated version of the Protocol
field.
pattern: ^.*
x-kubernetes-int-or-string: true
protocol:
anyOf:
- type: integer
- type: string
description: "Protocol is an optional field that restricts the
rule to only apply to traffic of a specific IP protocol. Required
if any of the EntityRules contain Ports (because ports only
apply to certain protocols). \n Must be one of these string
values: \"TCP\", \"UDP\", \"ICMP\", \"ICMPv6\", \"SCTP\",
\"UDPLite\" or an integer in the range 1-255."
pattern: ^.*
x-kubernetes-int-or-string: true
source:
description: Source contains the match criteria that apply to
source entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
required:
- action
type: object
type: array
namespaceSelector:
description: NamespaceSelector is an optional field for an expression
used to select a pod based on namespaces.
type: string
order:
description: Order is an optional field that specifies the order in
which the policy is applied. Policies with higher "order" are applied
after those with lower order. If the order is omitted, it may be
considered to be "infinite" - i.e. the policy will be applied last. Policies
with identical order will be applied in alphanumerical order based
on the Policy "Name".
type: number
preDNAT:
description: PreDNAT indicates to apply the rules in this policy before
any DNAT.
type: boolean
selector:
description: "The selector is an expression used to pick pick out
the endpoints that the policy should be applied to. \n Selector
expressions follow this syntax: \n \tlabel == \"string_literal\"
\ -> comparison, e.g. my_label == \"foo bar\" \tlabel != \"string_literal\"
\ -> not equal; also matches if label is not present \tlabel in
{ \"a\", \"b\", \"c\", ... } -> true if the value of label X is
one of \"a\", \"b\", \"c\" \tlabel not in { \"a\", \"b\", \"c\",
... } -> true if the value of label X is not one of \"a\", \"b\",
\"c\" \thas(label_name) -> True if that label is present \t! expr
-> negation of expr \texpr && expr -> Short-circuit and \texpr
|| expr -> Short-circuit or \t( expr ) -> parens for grouping \tall()
or the empty selector -> matches all endpoints. \n Label names are
allowed to contain alphanumerics, -, _ and /. String literals are
more permissive but they do not support escape characters. \n Examples
(with made-up labels): \n \ttype == \"webserver\" && deployment
== \"prod\" \ttype in {\"frontend\", \"backend\"} \tdeployment !=
\"dev\" \t! has(label_name)"
type: string
serviceAccountSelector:
description: ServiceAccountSelector is an optional field for an expression
used to select a pod based on service accounts.
type: string
types:
description: "Types indicates whether this policy applies to ingress,
or to egress, or to both. When not explicitly specified (and so
the value on creation is empty or nil), Calico defaults Types according
to what Ingress and Egress rules are present in the policy. The
default is: \n - [ PolicyTypeIngress ], if there are no Egress rules
(including the case where there are also no Ingress rules) \n
- [ PolicyTypeEgress ], if there are Egress rules but no Ingress
rules \n - [ PolicyTypeIngress, PolicyTypeEgress ], if there are
both Ingress and Egress rules. \n When the policy is read back again,
Types will always be one of these values, never empty or nil."
items:
description: PolicyType enumerates the possible values of the PolicySpec
Types field.
type: string
type: array
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: globalnetworksets.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: GlobalNetworkSet
listKind: GlobalNetworkSetList
plural: globalnetworksets
singular: globalnetworkset
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
description: GlobalNetworkSet contains a set of arbitrary IP sub-networks/CIDRs
that share labels to allow rules to refer to them via selectors. The labels
of GlobalNetworkSet are not namespaced.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: GlobalNetworkSetSpec contains the specification for a NetworkSet
resource.
properties:
nets:
description: The list of IP networks that belong to this set.
items:
type: string
type: array
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: hostendpoints.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: HostEndpoint
listKind: HostEndpointList
plural: hostendpoints
singular: hostendpoint
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: HostEndpointSpec contains the specification for a HostEndpoint
resource.
properties:
expectedIPs:
description: "The expected IP addresses (IPv4 and IPv6) of the endpoint.
If \"InterfaceName\" is not present, Calico will look for an interface
matching any of the IPs in the list and apply policy to that. Note:
\tWhen using the selector match criteria in an ingress or egress
security Policy \tor Profile, Calico converts the selector into
a set of IP addresses. For host \tendpoints, the ExpectedIPs field
is used for that purpose. (If only the interface \tname is specified,
Calico does not learn the IPs of the interface for use in match
\tcriteria.)"
items:
type: string
type: array
interfaceName:
description: "Either \"*\", or the name of a specific Linux interface
to apply policy to; or empty. \"*\" indicates that this HostEndpoint
governs all traffic to, from or through the default network namespace
of the host named by the \"Node\" field; entering and leaving that
namespace via any interface, including those from/to non-host-networked
local workloads. \n If InterfaceName is not \"*\", this HostEndpoint
only governs traffic that enters or leaves the host through the
specific interface named by InterfaceName, or - when InterfaceName
is empty - through the specific interface that has one of the IPs
in ExpectedIPs. Therefore, when InterfaceName is empty, at least
one expected IP must be specified. Only external interfaces (such
as \"eth0\") are supported here; it isn't possible for a HostEndpoint
to protect traffic through a specific local workload interface.
\n Note: Only some kinds of policy are implemented for \"*\" HostEndpoints;
initially just pre-DNAT policy. Please check Calico documentation
for the latest position."
type: string
node:
description: The node name identifying the Calico node instance.
type: string
ports:
description: Ports contains the endpoint's named ports, which may
be referenced in security policy rules.
items:
properties:
name:
type: string
port:
type: integer
protocol:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
required:
- name
- port
- protocol
type: object
type: array
profiles:
description: A list of identifiers of security Profile objects that
apply to this endpoint. Each profile is applied in the order that
they appear in this list. Profile rules are applied after the selector-based
security policy.
items:
type: string
type: array
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: ipamblocks.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: IPAMBlock
listKind: IPAMBlockList
plural: ipamblocks
singular: ipamblock
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IPAMBlockSpec contains the specification for an IPAMBlock
resource.
properties:
affinity:
type: string
allocations:
items:
type: integer
# TODO: This nullable is manually added in. We should update controller-gen
# to handle []*int properly itself.
nullable: true
type: array
attributes:
items:
properties:
handle_id:
type: string
secondary:
additionalProperties:
type: string
type: object
type: object
type: array
cidr:
type: string
deleted:
type: boolean
strictAffinity:
type: boolean
unallocated:
items:
type: integer
type: array
required:
- allocations
- attributes
- cidr
- strictAffinity
- unallocated
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: ipamconfigs.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: IPAMConfig
listKind: IPAMConfigList
plural: ipamconfigs
singular: ipamconfig
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IPAMConfigSpec contains the specification for an IPAMConfig
resource.
properties:
autoAllocateBlocks:
type: boolean
maxBlocksPerHost:
description: MaxBlocksPerHost, if non-zero, is the max number of blocks
that can be affine to each host.
type: integer
strictAffinity:
type: boolean
required:
- autoAllocateBlocks
- strictAffinity
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: ipamhandles.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: IPAMHandle
listKind: IPAMHandleList
plural: ipamhandles
singular: ipamhandle
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IPAMHandleSpec contains the specification for an IPAMHandle
resource.
properties:
block:
additionalProperties:
type: integer
type: object
deleted:
type: boolean
handleID:
type: string
required:
- block
- handleID
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: ippools.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: IPPool
listKind: IPPoolList
plural: ippools
singular: ippool
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: IPPoolSpec contains the specification for an IPPool resource.
properties:
blockSize:
description: The block size to use for IP address assignments from
this pool. Defaults to 26 for IPv4 and 112 for IPv6.
type: integer
cidr:
description: The pool CIDR.
type: string
disabled:
description: When disabled is true, Calico IPAM will not assign addresses
from this pool.
type: boolean
ipip:
description: 'Deprecated: this field is only used for APIv1 backwards
compatibility. Setting this field is not allowed, this field is
for internal use only.'
properties:
enabled:
description: When enabled is true, ipip tunneling will be used
to deliver packets to destinations within this pool.
type: boolean
mode:
description: The IPIP mode. This can be one of "always" or "cross-subnet". A
mode of "always" will also use IPIP tunneling for routing to
destination IP addresses within this pool. A mode of "cross-subnet"
will only use IPIP tunneling when the destination node is on
a different subnet to the originating node. The default value
(if not specified) is "always".
type: string
type: object
ipipMode:
description: Contains configuration for IPIP tunneling for this pool.
If not specified, then this is defaulted to "Never" (i.e. IPIP tunneling
is disabled).
type: string
nat-outgoing:
description: 'Deprecated: this field is only used for APIv1 backwards
compatibility. Setting this field is not allowed, this field is
for internal use only.'
type: boolean
natOutgoing:
description: When nat-outgoing is true, packets sent from Calico networked
containers in this pool to destinations outside of this pool will
be masqueraded.
type: boolean
nodeSelector:
description: Allows IPPool to allocate for a specific node by label
selector.
type: string
vxlanMode:
description: Contains configuration for VXLAN tunneling for this pool.
If not specified, then this is defaulted to "Never" (i.e. VXLAN
tunneling is disabled).
type: string
required:
- cidr
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: kubecontrollersconfigurations.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: KubeControllersConfiguration
listKind: KubeControllersConfigurationList
plural: kubecontrollersconfigurations
singular: kubecontrollersconfiguration
scope: Cluster
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: KubeControllersConfigurationSpec contains the values of the
Kubernetes controllers configuration.
properties:
controllers:
description: Controllers enables and configures individual Kubernetes
controllers
properties:
namespace:
description: Namespace enables and configures the namespace controller.
Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform reconciliation
with the Calico datastore. [Default: 5m]'
type: string
type: object
node:
description: Node enables and configures the node controller.
Enabled by default, set to nil to disable.
properties:
hostEndpoint:
description: HostEndpoint controls syncing nodes to host endpoints.
Disabled by default, set to nil to disable.
properties:
autoCreate:
description: 'AutoCreate enables automatic creation of
host endpoints for every node. [Default: Disabled]'
type: string
type: object
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform reconciliation
with the Calico datastore. [Default: 5m]'
type: string
syncLabels:
description: 'SyncLabels controls whether to copy Kubernetes
node labels to Calico nodes. [Default: Enabled]'
type: string
type: object
policy:
description: Policy enables and configures the policy controller.
Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform reconciliation
with the Calico datastore. [Default: 5m]'
type: string
type: object
serviceAccount:
description: ServiceAccount enables and configures the service
account controller. Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform reconciliation
with the Calico datastore. [Default: 5m]'
type: string
type: object
workloadEndpoint:
description: WorkloadEndpoint enables and configures the workload
endpoint controller. Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform reconciliation
with the Calico datastore. [Default: 5m]'
type: string
type: object
type: object
etcdV3CompactionPeriod:
description: 'EtcdV3CompactionPeriod is the period between etcdv3
compaction requests. Set to 0 to disable. [Default: 10m]'
type: string
healthChecks:
description: 'HealthChecks enables or disables support for health
checks [Default: Enabled]'
type: string
logSeverityScreen:
description: 'LogSeverityScreen is the log severity above which logs
are sent to the stdout. [Default: Info]'
type: string
prometheusMetricsPort:
description: 'PrometheusMetricsPort is the TCP port that the Prometheus
metrics server should bind to. Set to 0 to disable. [Default: 9094]'
type: integer
required:
- controllers
type: object
status:
description: KubeControllersConfigurationStatus represents the status
of the configuration. It's useful for admins to be able to see the actual
config that was applied, which can be modified by environment variables
on the kube-controllers process.
properties:
environmentVars:
additionalProperties:
type: string
description: EnvironmentVars contains the environment variables on
the kube-controllers that influenced the RunningConfig.
type: object
runningConfig:
description: RunningConfig contains the effective config that is running
in the kube-controllers pod, after merging the API resource with
any environment variables.
properties:
controllers:
description: Controllers enables and configures individual Kubernetes
controllers
properties:
namespace:
description: Namespace enables and configures the namespace
controller. Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform
reconciliation with the Calico datastore. [Default:
5m]'
type: string
type: object
node:
description: Node enables and configures the node controller.
Enabled by default, set to nil to disable.
properties:
hostEndpoint:
description: HostEndpoint controls syncing nodes to host
endpoints. Disabled by default, set to nil to disable.
properties:
autoCreate:
description: 'AutoCreate enables automatic creation
of host endpoints for every node. [Default: Disabled]'
type: string
type: object
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform
reconciliation with the Calico datastore. [Default:
5m]'
type: string
syncLabels:
description: 'SyncLabels controls whether to copy Kubernetes
node labels to Calico nodes. [Default: Enabled]'
type: string
type: object
policy:
description: Policy enables and configures the policy controller.
Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform
reconciliation with the Calico datastore. [Default:
5m]'
type: string
type: object
serviceAccount:
description: ServiceAccount enables and configures the service
account controller. Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform
reconciliation with the Calico datastore. [Default:
5m]'
type: string
type: object
workloadEndpoint:
description: WorkloadEndpoint enables and configures the workload
endpoint controller. Enabled by default, set to nil to disable.
properties:
reconcilerPeriod:
description: 'ReconcilerPeriod is the period to perform
reconciliation with the Calico datastore. [Default:
5m]'
type: string
type: object
type: object
etcdV3CompactionPeriod:
description: 'EtcdV3CompactionPeriod is the period between etcdv3
compaction requests. Set to 0 to disable. [Default: 10m]'
type: string
healthChecks:
description: 'HealthChecks enables or disables support for health
checks [Default: Enabled]'
type: string
logSeverityScreen:
description: 'LogSeverityScreen is the log severity above which
logs are sent to the stdout. [Default: Info]'
type: string
prometheusMetricsPort:
description: 'PrometheusMetricsPort is the TCP port that the Prometheus
metrics server should bind to. Set to 0 to disable. [Default:
9094]'
type: integer
required:
- controllers
type: object
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: networkpolicies.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: NetworkPolicy
listKind: NetworkPolicyList
plural: networkpolicies
singular: networkpolicy
scope: Namespaced
versions:
- name: v1
schema:
openAPIV3Schema:
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
properties:
egress:
description: The ordered set of egress rules. Each rule contains
a set of packet match criteria and a corresponding action to apply.
items:
description: "A Rule encapsulates a set of match criteria and an
action. Both selector-based security Policy and security Profiles
reference rules - separated out as a list of rules for both ingress
and egress packet matching. \n Each positive match criteria has
a negated version, prefixed with \"Not\". All the match criteria
within a rule must be satisfied for a packet to match. A single
rule can contain the positive and negative version of a match
and both must be satisfied for the rule to match."
properties:
action:
type: string
destination:
description: Destination contains the match criteria that apply
to destination entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
http:
description: HTTP contains match criteria that apply to HTTP
requests.
properties:
methods:
description: Methods is an optional field that restricts
the rule to apply only to HTTP requests that use one of
the listed HTTP Methods (e.g. GET, PUT, etc.) Multiple
methods are OR'd together.
items:
type: string
type: array
paths:
description: 'Paths is an optional field that restricts
the rule to apply to HTTP requests that use one of the
listed HTTP Paths. Multiple paths are OR''d together.
e.g: - exact: /foo - prefix: /bar NOTE: Each entry may
ONLY specify either a `exact` or a `prefix` match. The
validator will check for it.'
items:
description: 'HTTPPath specifies an HTTP path to match.
It may be either of the form: exact: <path>: which matches
the path exactly or prefix: <path-prefix>: which matches
the path prefix'
properties:
exact:
type: string
prefix:
type: string
type: object
type: array
type: object
icmp:
description: ICMP is an optional field that restricts the rule
to apply to a specific type and code of ICMP traffic. This
should only be specified if the Protocol field is set to "ICMP"
or "ICMPv6".
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
ipVersion:
description: IPVersion is an optional field that restricts the
rule to only match a specific IP version.
type: integer
metadata:
description: Metadata contains additional information for this
rule
properties:
annotations:
additionalProperties:
type: string
description: Annotations is a set of key value pairs that
give extra information about the rule
type: object
type: object
notICMP:
description: NotICMP is the negated version of the ICMP field.
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
notProtocol:
anyOf:
- type: integer
- type: string
description: NotProtocol is the negated version of the Protocol
field.
pattern: ^.*
x-kubernetes-int-or-string: true
protocol:
anyOf:
- type: integer
- type: string
description: "Protocol is an optional field that restricts the
rule to only apply to traffic of a specific IP protocol. Required
if any of the EntityRules contain Ports (because ports only
apply to certain protocols). \n Must be one of these string
values: \"TCP\", \"UDP\", \"ICMP\", \"ICMPv6\", \"SCTP\",
\"UDPLite\" or an integer in the range 1-255."
pattern: ^.*
x-kubernetes-int-or-string: true
source:
description: Source contains the match criteria that apply to
source entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
required:
- action
type: object
type: array
ingress:
description: The ordered set of ingress rules. Each rule contains
a set of packet match criteria and a corresponding action to apply.
items:
description: "A Rule encapsulates a set of match criteria and an
action. Both selector-based security Policy and security Profiles
reference rules - separated out as a list of rules for both ingress
and egress packet matching. \n Each positive match criteria has
a negated version, prefixed with \"Not\". All the match criteria
within a rule must be satisfied for a packet to match. A single
rule can contain the positive and negative version of a match
and both must be satisfied for the rule to match."
properties:
action:
type: string
destination:
description: Destination contains the match criteria that apply
to destination entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
http:
description: HTTP contains match criteria that apply to HTTP
requests.
properties:
methods:
description: Methods is an optional field that restricts
the rule to apply only to HTTP requests that use one of
the listed HTTP Methods (e.g. GET, PUT, etc.) Multiple
methods are OR'd together.
items:
type: string
type: array
paths:
description: 'Paths is an optional field that restricts
the rule to apply to HTTP requests that use one of the
listed HTTP Paths. Multiple paths are OR''d together.
e.g: - exact: /foo - prefix: /bar NOTE: Each entry may
ONLY specify either a `exact` or a `prefix` match. The
validator will check for it.'
items:
description: 'HTTPPath specifies an HTTP path to match.
It may be either of the form: exact: <path>: which matches
the path exactly or prefix: <path-prefix>: which matches
the path prefix'
properties:
exact:
type: string
prefix:
type: string
type: object
type: array
type: object
icmp:
description: ICMP is an optional field that restricts the rule
to apply to a specific type and code of ICMP traffic. This
should only be specified if the Protocol field is set to "ICMP"
or "ICMPv6".
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
ipVersion:
description: IPVersion is an optional field that restricts the
rule to only match a specific IP version.
type: integer
metadata:
description: Metadata contains additional information for this
rule
properties:
annotations:
additionalProperties:
type: string
description: Annotations is a set of key value pairs that
give extra information about the rule
type: object
type: object
notICMP:
description: NotICMP is the negated version of the ICMP field.
properties:
code:
description: Match on a specific ICMP code. If specified,
the Type value must also be specified. This is a technical
limitation imposed by the kernel's iptables firewall,
which Calico uses to enforce the rule.
type: integer
type:
description: Match on a specific ICMP type. For example
a value of 8 refers to ICMP Echo Request (i.e. pings).
type: integer
type: object
notProtocol:
anyOf:
- type: integer
- type: string
description: NotProtocol is the negated version of the Protocol
field.
pattern: ^.*
x-kubernetes-int-or-string: true
protocol:
anyOf:
- type: integer
- type: string
description: "Protocol is an optional field that restricts the
rule to only apply to traffic of a specific IP protocol. Required
if any of the EntityRules contain Ports (because ports only
apply to certain protocols). \n Must be one of these string
values: \"TCP\", \"UDP\", \"ICMP\", \"ICMPv6\", \"SCTP\",
\"UDPLite\" or an integer in the range 1-255."
pattern: ^.*
x-kubernetes-int-or-string: true
source:
description: Source contains the match criteria that apply to
source entity.
properties:
namespaceSelector:
description: "NamespaceSelector is an optional field that
contains a selector expression. Only traffic that originates
from (or terminates at) endpoints within the selected
namespaces will be matched. When both NamespaceSelector
and Selector are defined on the same rule, then only workload
endpoints that are matched by both selectors will be selected
by the rule. \n For NetworkPolicy, an empty NamespaceSelector
implies that the Selector is limited to selecting only
workload endpoints in the same namespace as the NetworkPolicy.
\n For NetworkPolicy, `global()` NamespaceSelector implies
that the Selector is limited to selecting only GlobalNetworkSet
or HostEndpoint. \n For GlobalNetworkPolicy, an empty
NamespaceSelector implies the Selector applies to workload
endpoints across all namespaces."
type: string
nets:
description: Nets is an optional field that restricts the
rule to only apply to traffic that originates from (or
terminates at) IP addresses in any of the given subnets.
items:
type: string
type: array
notNets:
description: NotNets is the negated version of the Nets
field.
items:
type: string
type: array
notPorts:
description: NotPorts is the negated version of the Ports
field. Since only some protocols have ports, if any ports
are specified it requires the Protocol match in the Rule
to be set to "TCP" or "UDP".
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
notSelector:
description: NotSelector is the negated version of the Selector
field. See Selector field for subtleties with negated
selectors.
type: string
ports:
description: "Ports is an optional field that restricts
the rule to only apply to traffic that has a source (destination)
port that matches one of these ranges/values. This value
is a list of integers or strings that represent ranges
of ports. \n Since only some protocols have ports, if
any ports are specified it requires the Protocol match
in the Rule to be set to \"TCP\" or \"UDP\"."
items:
anyOf:
- type: integer
- type: string
pattern: ^.*
x-kubernetes-int-or-string: true
type: array
selector:
description: "Selector is an optional field that contains
a selector expression (see Policy for sample syntax).
\ Only traffic that originates from (terminates at) endpoints
matching the selector will be matched. \n Note that: in
addition to the negated version of the Selector (see NotSelector
below), the selector expression syntax itself supports
negation. The two types of negation are subtly different.
One negates the set of matched endpoints, the other negates
the whole match: \n \tSelector = \"!has(my_label)\" matches
packets that are from other Calico-controlled \tendpoints
that do not have the label \"my_label\". \n \tNotSelector
= \"has(my_label)\" matches packets that are not from
Calico-controlled \tendpoints that do have the label \"my_label\".
\n The effect is that the latter will accept packets from
non-Calico sources whereas the former is limited to packets
from Calico-controlled endpoints."
type: string
serviceAccounts:
description: ServiceAccounts is an optional field that restricts
the rule to only apply to traffic that originates from
(or terminates at) a pod running as a matching service
account.
properties:
names:
description: Names is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account whose name is in the list.
items:
type: string
type: array
selector:
description: Selector is an optional field that restricts
the rule to only apply to traffic that originates
from (or terminates at) a pod running as a service
account that matches the given label selector. If
both Names and Selector are specified then they are
AND'ed.
type: string
type: object
type: object
required:
- action
type: object
type: array
order:
description: Order is an optional field that specifies the order in
which the policy is applied. Policies with higher "order" are applied
after those with lower order. If the order is omitted, it may be
considered to be "infinite" - i.e. the policy will be applied last. Policies
with identical order will be applied in alphanumerical order based
on the Policy "Name".
type: number
selector:
description: "The selector is an expression used to pick pick out
the endpoints that the policy should be applied to. \n Selector
expressions follow this syntax: \n \tlabel == \"string_literal\"
\ -> comparison, e.g. my_label == \"foo bar\" \tlabel != \"string_literal\"
\ -> not equal; also matches if label is not present \tlabel in
{ \"a\", \"b\", \"c\", ... } -> true if the value of label X is
one of \"a\", \"b\", \"c\" \tlabel not in { \"a\", \"b\", \"c\",
... } -> true if the value of label X is not one of \"a\", \"b\",
\"c\" \thas(label_name) -> True if that label is present \t! expr
-> negation of expr \texpr && expr -> Short-circuit and \texpr
|| expr -> Short-circuit or \t( expr ) -> parens for grouping \tall()
or the empty selector -> matches all endpoints. \n Label names are
allowed to contain alphanumerics, -, _ and /. String literals are
more permissive but they do not support escape characters. \n Examples
(with made-up labels): \n \ttype == \"webserver\" && deployment
== \"prod\" \ttype in {\"frontend\", \"backend\"} \tdeployment !=
\"dev\" \t! has(label_name)"
type: string
serviceAccountSelector:
description: ServiceAccountSelector is an optional field for an expression
used to select a pod based on service accounts.
type: string
types:
description: "Types indicates whether this policy applies to ingress,
or to egress, or to both. When not explicitly specified (and so
the value on creation is empty or nil), Calico defaults Types according
to what Ingress and Egress are present in the policy. The default
is: \n - [ PolicyTypeIngress ], if there are no Egress rules (including
the case where there are also no Ingress rules) \n - [ PolicyTypeEgress
], if there are Egress rules but no Ingress rules \n - [ PolicyTypeIngress,
PolicyTypeEgress ], if there are both Ingress and Egress rules.
\n When the policy is read back again, Types will always be one
of these values, never empty or nil."
items:
description: PolicyType enumerates the possible values of the PolicySpec
Types field.
type: string
type: array
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
name: networksets.crd.projectcalico.org
spec:
group: crd.projectcalico.org
names:
kind: NetworkSet
listKind: NetworkSetList
plural: networksets
singular: networkset
scope: Namespaced
versions:
- name: v1
schema:
openAPIV3Schema:
description: NetworkSet is the Namespaced-equivalent of the GlobalNetworkSet.
properties:
apiVersion:
description: 'APIVersion defines the versioned schema of this representation
of an object. Servers should convert recognized schemas to the latest
internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
type: string
kind:
description: 'Kind is a string value representing the REST resource this
object represents. Servers may infer this from the endpoint the client
submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
type: string
metadata:
type: object
spec:
description: NetworkSetSpec contains the specification for a NetworkSet
resource.
properties:
nets:
description: The list of IP networks that belong to this set.
items:
type: string
type: array
type: object
type: object
served: true
storage: true
status:
acceptedNames:
kind: ""
plural: ""
conditions: []
storedVersions: []
---
---
# Source: calico/templates/calico-kube-controllers-rbac.yaml
# Include a clusterrole for the kube-controllers component,
# and bind it to the calico-kube-controllers serviceaccount.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: calico-kube-controllers
rules:
# Nodes are watched to monitor for deletions.
- apiGroups: [""]
resources:
- nodes
verbs:
- watch
- list
- get
# Pods are queried to check for existence.
- apiGroups: [""]
resources:
- pods
verbs:
- get
# IPAM resources are manipulated when nodes are deleted.
- apiGroups: ["crd.projectcalico.org"]
resources:
- ippools
verbs:
- list
- apiGroups: ["crd.projectcalico.org"]
resources:
- blockaffinities
- ipamblocks
- ipamhandles
verbs:
- get
- list
- create
- update
- delete
- watch
# kube-controllers manages hostendpoints.
- apiGroups: ["crd.projectcalico.org"]
resources:
- hostendpoints
verbs:
- get
- list
- create
- update
- delete
# Needs access to update clusterinformations.
- apiGroups: ["crd.projectcalico.org"]
resources:
- clusterinformations
verbs:
- get
- create
- update
# KubeControllersConfiguration is where it gets its config
- apiGroups: ["crd.projectcalico.org"]
resources:
- kubecontrollersconfigurations
verbs:
# read its own config
- get
# create a default if none exists
- create
# update status
- update
# watch for changes
- watch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: calico-kube-controllers
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: calico-kube-controllers
subjects:
- kind: ServiceAccount
name: calico-kube-controllers
namespace: kube-system
---
---
# Source: calico/templates/calico-node-rbac.yaml
# Include a clusterrole for the calico-node DaemonSet,
# and bind it to the calico-node serviceaccount.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: calico-node
rules:
# The CNI plugin needs to get pods, nodes, and namespaces.
- apiGroups: [""]
resources:
- pods
- nodes
- namespaces
verbs:
- get
- apiGroups: [""]
resources:
- endpoints
- services
verbs:
# Used to discover service IPs for advertisement.
- watch
- list
# Used to discover Typhas.
- get
# Pod CIDR auto-detection on kubeadm needs access to config maps.
- apiGroups: [""]
resources:
- configmaps
verbs:
- get
- apiGroups: [""]
resources:
- nodes/status
verbs:
# Needed for clearing NodeNetworkUnavailable flag.
- patch
# Calico stores some configuration information in node annotations.
- update
# Watch for changes to Kubernetes NetworkPolicies.
- apiGroups: ["networking.k8s.io"]
resources:
- networkpolicies
verbs:
- watch
- list
# Used by Calico for policy information.
- apiGroups: [""]
resources:
- pods
- namespaces
- serviceaccounts
verbs:
- list
- watch
# The CNI plugin patches pods/status.
- apiGroups: [""]
resources:
- pods/status
verbs:
- patch
# Calico monitors various CRDs for config.
- apiGroups: ["crd.projectcalico.org"]
resources:
- globalfelixconfigs
- felixconfigurations
- bgppeers
- globalbgpconfigs
- bgpconfigurations
- ippools
- ipamblocks
- globalnetworkpolicies
- globalnetworksets
- networkpolicies
- networksets
- clusterinformations
- hostendpoints
- blockaffinities
verbs:
- get
- list
- watch
# Calico must create and update some CRDs on startup.
- apiGroups: ["crd.projectcalico.org"]
resources:
- ippools
- felixconfigurations
- clusterinformations
verbs:
- create
- update
# Calico stores some configuration information on the node.
- apiGroups: [""]
resources:
- nodes
verbs:
- get
- list
- watch
# These permissions are only required for upgrade from v2.6, and can
# be removed after upgrade or on fresh installations.
- apiGroups: ["crd.projectcalico.org"]
resources:
- bgpconfigurations
- bgppeers
verbs:
- create
- update
# These permissions are required for Calico CNI to perform IPAM allocations.
- apiGroups: ["crd.projectcalico.org"]
resources:
- blockaffinities
- ipamblocks
- ipamhandles
verbs:
- get
- list
- create
- update
- delete
- apiGroups: ["crd.projectcalico.org"]
resources:
- ipamconfigs
verbs:
- get
# Block affinities must also be watchable by confd for route aggregation.
- apiGroups: ["crd.projectcalico.org"]
resources:
- blockaffinities
verbs:
- watch
# The Calico IPAM migration needs to get daemonsets. These permissions can be
# removed if not upgrading from an installation using host-local IPAM.
- apiGroups: ["apps"]
resources:
- daemonsets
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: calico-node
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: calico-node
subjects:
- kind: ServiceAccount
name: calico-node
namespace: kube-system
---
# Source: calico/templates/calico-node.yaml
# This manifest installs the calico-node container, as well
# as the CNI plugins and network config on
# each master and worker node in a Kubernetes cluster.
kind: DaemonSet
apiVersion: apps/v1
metadata:
name: calico-node
namespace: kube-system
labels:
k8s-app: calico-node
spec:
selector:
matchLabels:
k8s-app: calico-node
updateStrategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1
template:
metadata:
labels:
k8s-app: calico-node
spec:
nodeSelector:
kubernetes.io/os: linux
hostNetwork: true
tolerations:
# Make sure calico-node gets scheduled on all nodes.
- effect: NoSchedule
operator: Exists
# Mark the pod as a critical add-on for rescheduling.
- key: CriticalAddonsOnly
operator: Exists
- effect: NoExecute
operator: Exists
serviceAccountName: calico-node
# Minimize downtime during a rolling upgrade or deletion; tell Kubernetes to do a "force
# deletion": https://kubernetes.io/docs/concepts/workloads/pods/pod/#termination-of-pods.
terminationGracePeriodSeconds: 0
priorityClassName: system-node-critical
initContainers:
# This container performs upgrade from host-local IPAM to calico-ipam.
# It can be deleted if this is a fresh installation, or if you have already
# upgraded to use calico-ipam.
- name: upgrade-ipam
image: docker.io/calico/cni:v3.18.0
command: ["/opt/cni/bin/calico-ipam", "-upgrade"]
envFrom:
- configMapRef:
# Allow KUBERNETES_SERVICE_HOST and KUBERNETES_SERVICE_PORT to be overridden for eBPF mode.
name: kubernetes-services-endpoint
optional: true
env:
- name: KUBERNETES_NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: CALICO_NETWORKING_BACKEND
valueFrom:
configMapKeyRef:
name: calico-config
key: calico_backend
volumeMounts:
- mountPath: /var/lib/cni/networks
name: host-local-net-dir
- mountPath: /host/opt/cni/bin
name: cni-bin-dir
securityContext:
privileged: true
# This container installs the CNI binaries
# and CNI network config file on each node.
- name: install-cni
image: docker.io/calico/cni:v3.18.0
command: ["/opt/cni/bin/install"]
envFrom:
- configMapRef:
# Allow KUBERNETES_SERVICE_HOST and KUBERNETES_SERVICE_PORT to be overridden for eBPF mode.
name: kubernetes-services-endpoint
optional: true
env:
# Name of the CNI config file to create.
- name: CNI_CONF_NAME
value: "10-calico.conflist"
# The CNI network config to install on each node.
- name: CNI_NETWORK_CONFIG
valueFrom:
configMapKeyRef:
name: calico-config
key: cni_network_config
# Set the hostname based on the k8s node name.
- name: KUBERNETES_NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
# CNI MTU Config variable
- name: CNI_MTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# Prevents the container from sleeping forever.
- name: SLEEP
value: "false"
volumeMounts:
- mountPath: /host/opt/cni/bin
name: cni-bin-dir
- mountPath: /host/etc/cni/net.d
name: cni-net-dir
securityContext:
privileged: true
# Adds a Flex Volume Driver that creates a per-pod Unix Domain Socket to allow Dikastes
# to communicate with Felix over the Policy Sync API.
- name: flexvol-driver
image: docker.io/calico/pod2daemon-flexvol:v3.18.0
volumeMounts:
- name: flexvol-driver-host
mountPath: /host/driver
securityContext:
privileged: true
containers:
# Runs calico-node container on each Kubernetes node. This
# container programs network policy and routes on each
# host.
- name: calico-node
image: docker.io/calico/node:v3.18.0
envFrom:
- configMapRef:
# Allow KUBERNETES_SERVICE_HOST and KUBERNETES_SERVICE_PORT to be overridden for eBPF mode.
name: kubernetes-services-endpoint
optional: true
env:
# Use Kubernetes API as the backing datastore.
- name: DATASTORE_TYPE
value: "kubernetes"
# Wait for the datastore.
- name: WAIT_FOR_DATASTORE
value: "true"
# Set based on the k8s node name.
- name: NODENAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
# Choose the backend to use.
- name: CALICO_NETWORKING_BACKEND
valueFrom:
configMapKeyRef:
name: calico-config
key: calico_backend
# Cluster type to identify the deployment type
- name: CLUSTER_TYPE
value: "k8s,bgp"
# Auto-detect the BGP IP address.
- name: IP
value: "autodetect"
# Enable IPIP
- name: CALICO_IPV4POOL_IPIP
value: "Always"
# Enable or Disable VXLAN on the default IP pool.
- name: CALICO_IPV4POOL_VXLAN
value: "Never"
# Set MTU for tunnel device used if ipip is enabled
- name: FELIX_IPINIPMTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# Set MTU for the VXLAN tunnel device.
- name: FELIX_VXLANMTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# Set MTU for the Wireguard tunnel device.
- name: FELIX_WIREGUARDMTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# The default IPv4 pool to create on startup if none exists. Pod IPs will be
# chosen from this range. Changing this value after installation will have
# no effect. This should fall within `--cluster-cidr`.
# - name: CALICO_IPV4POOL_CIDR
# value: "192.168.0.0/16"
# Disable file logging so `kubectl logs` works.
- name: CALICO_DISABLE_FILE_LOGGING
value: "true"
# Set Felix endpoint to host default action to ACCEPT.
- name: FELIX_DEFAULTENDPOINTTOHOSTACTION
value: "ACCEPT"
# Disable IPv6 on Kubernetes.
- name: FELIX_IPV6SUPPORT
value: "false"
# Set Felix logging to "info"
- name: FELIX_LOGSEVERITYSCREEN
value: "info"
- name: FELIX_HEALTHENABLED
value: "true"
securityContext:
privileged: true
resources:
requests:
cpu: 250m
livenessProbe:
exec:
command:
- /bin/calico-node
- -felix-live
- -bird-live
periodSeconds: 10
initialDelaySeconds: 10
failureThreshold: 6
readinessProbe:
exec:
command:
- /bin/calico-node
- -felix-ready
- -bird-ready
periodSeconds: 10
volumeMounts:
- mountPath: /lib/modules
name: lib-modules
readOnly: true
- mountPath: /run/xtables.lock
name: xtables-lock
readOnly: false
- mountPath: /var/run/calico
name: var-run-calico
readOnly: false
- mountPath: /var/lib/calico
name: var-lib-calico
readOnly: false
- name: policysync
mountPath: /var/run/nodeagent
# For eBPF mode, we need to be able to mount the BPF filesystem at /sys/fs/bpf so we mount in the
# parent directory.
- name: sysfs
mountPath: /sys/fs/
# Bidirectional means that, if we mount the BPF filesystem at /sys/fs/bpf it will propagate to the host.
# If the host is known to mount that filesystem already then Bidirectional can be omitted.
mountPropagation: Bidirectional
- name: cni-log-dir
mountPath: /var/log/calico/cni
readOnly: true
volumes:
# Used by calico-node.
- name: lib-modules
hostPath:
path: /lib/modules
- name: var-run-calico
hostPath:
path: /var/run/calico
- name: var-lib-calico
hostPath:
path: /var/lib/calico
- name: xtables-lock
hostPath:
path: /run/xtables.lock
type: FileOrCreate
- name: sysfs
hostPath:
path: /sys/fs/
type: DirectoryOrCreate
# Used to install CNI.
- name: cni-bin-dir
hostPath:
path: /opt/cni/bin
- name: cni-net-dir
hostPath:
path: /etc/cni/net.d
# Used to access CNI logs.
- name: cni-log-dir
hostPath:
path: /var/log/calico/cni
# Mount in the directory for host-local IPAM allocations. This is
# used when upgrading from host-local to calico-ipam, and can be removed
# if not using the upgrade-ipam init container.
- name: host-local-net-dir
hostPath:
path: /var/lib/cni/networks
# Used to create per-pod Unix Domain Sockets
- name: policysync
hostPath:
type: DirectoryOrCreate
path: /var/run/nodeagent
# Used to install Flex Volume Driver
- name: flexvol-driver-host
hostPath:
type: DirectoryOrCreate
path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec/nodeagent~uds
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: calico-node
namespace: kube-system
---
# Source: calico/templates/calico-kube-controllers.yaml
# See https://github.com/projectcalico/kube-controllers
apiVersion: apps/v1
kind: Deployment
metadata:
name: calico-kube-controllers
namespace: kube-system
labels:
k8s-app: calico-kube-controllers
spec:
# The controllers can only have a single active instance.
replicas: 1
selector:
matchLabels:
k8s-app: calico-kube-controllers
strategy:
type: Recreate
template:
metadata:
name: calico-kube-controllers
namespace: kube-system
labels:
k8s-app: calico-kube-controllers
spec:
nodeSelector:
kubernetes.io/os: linux
tolerations:
# Mark the pod as a critical add-on for rescheduling.
- key: CriticalAddonsOnly
operator: Exists
- key: node-role.kubernetes.io/master
effect: NoSchedule
serviceAccountName: calico-kube-controllers
priorityClassName: system-cluster-critical
containers:
- name: calico-kube-controllers
image: docker.io/calico/kube-controllers:v3.18.0
env:
# Choose which controllers to run.
- name: ENABLED_CONTROLLERS
value: node
- name: DATASTORE_TYPE
value: kubernetes
readinessProbe:
exec:
command:
- /usr/bin/check-status
- -r
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: calico-kube-controllers
namespace: kube-system
---
# This manifest creates a Pod Disruption Budget for Controller to allow K8s Cluster Autoscaler to evict
apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
name: calico-kube-controllers
namespace: kube-system
labels:
k8s-app: calico-kube-controllers
spec:
maxUnavailable: 1
selector:
matchLabels:
k8s-app: calico-kube-controllers
---
# Source: calico/templates/calico-etcd-secrets.yaml
---
# Source: calico/templates/calico-typha.yaml
---
# Source: calico/templates/configure-canal.yaml
如果是从网络上拉取的calico.yaml文件，需要将calico镜像的拉取地址改为国内镜像源
sed -i -E 's#image: docker.io/calico/([a-zA-Z0-9-]+):#image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/\1:#g' calico.yaml
然后以pod的方式创建Calico容器
kubectl apply -f calico.yaml
查看新创建的pod，显示运行则为正常 ，10.244.xxx.xxx网段的ip即是Calico分配的ip
kubectl get pods -n kube-system -o wide
kubectl get nodes
删除Calico
kubectl delete -f calico.yaml
清理 CNI 配置文件
sudo rm -rf /etc/cni/net.d/*
sudo rm -rf /opt/cni/bin/*
重启 kubelet 和 containerd 服务
sudo systemctl restart containerd
sudo systemctl restart kubelet
调整Master执行Pod策略
一般情况下，master节点上不允许运行用户pod，kubernetes通过Taint（污点）实现，当某个节点被打上Taint（污点）后，所有的pod不能在该节点上运行。
为master节点打上污点
kubectl taint nodes <节点名> node-role.kubernetes.io/master=:NoSchedule
NoSchedule表示这个污点阻止调度器将 pod 调度到这个节点上（除非 pod 明确容忍这个污点）
如果要要移除污点，则在上面命令后面加上“-”即可
kubectl taint nodes <节点名> node-role.kubernetes.io/master=:NoSchedule-
测试
测试k8s集群网络是否正常
首先拉取 busybox镜像
ctr image pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/busybox:latest
然后使用kubectl 创建pod
kubectl run busybox --image=swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/busybox:latest --restart=Never --rm -it -- sh
在该pod中ping www.baidu.com 看能不能ping通
然后ping 其他的pod ip（calico分配的ip）看能不能ping通
都能ping通则网络没有问题。
部署tomcat服务
首先创建一个tomcat.yaml文件，pod的字段1
apiVersion: apps/v1
kind: Deployment
metadata:
name: tomcat
labels:
app: tomcat
spec:
replicas: 1
selector:
matchLabels:
app: tomcat
template:
metadata:
labels:
app: tomcat
spec:
containers:
- name: tomcat
image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/tomcat:9.0.96-jdk17
ports:
- containerPort: 8080
# 资源限制可按需加
resources:
limits:
cpu: "500m"
memory: "512Mi"
requests:
cpu: "250m"
memory: "256Mi"
---
apiVersion: v1
kind: Service
metadata:
name: tomcat-service
spec:
selector:
app: tomcat
ports:
- protocol: TCP
port: 80 # 集群内访问服务的端口
targetPort: 8080 # 容器监听的端口
nodePort: 30080 # 节点暴露的端口（可选，不写会自动分配）
type: NodePort
然后使用kubectl 创建pod
kubectl apply -f tomcat.yaml
显示 deployment.apps/tomcat created和service/tomcat-service created即可，然后使用kubectl get pods查看
service服务作为pod的代理入口，代替pod对外暴露一个固定的网络地址
[root@master1-1 ~]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
tomcat-67b6548b65-mj5fc 1/1 Running 0 36m 10.244.31.3 node1-1 <none> <none>
NodePort类型会将端口暴露到外部，例如下面的tomcat将80端口暴露到了节点30080端口，可以使用节点IP:30080的方式访问
[root@master1-1 ~]# kubectl get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.10.0.1 <none> 443/TCP 58m
tomcat-service NodePort 10.10.137.231 <none> 80:30080/TCP 34s
后面可以使用master1-1、master1-2或者node1-1的IP+端口方式访问tomcat
问题汇总
kubeadm初始化时卡住
1
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[kubelet-check] Initial timeout of 40s passed.
查看kubelet日志
journalctl -u kubelet -n 50 --no-pager
如果出现
W0522 17:30:16.581791 181051 checks.go:835] detected that the sandbox image "registry.k8s.io/pause:3.6" of the container runtime is inconsistent with that used by kubeadm. It is recommended that using "registry.k8s.io/pause:3.9" as the CRI sandbox image.
修改/etc/containerd/config.toml文件，搜索sandbox_image，将其修改为registry.aliyuncs.com/google_containers/pause:3.9然后重启containerd服务，清理完初始化文件后重新初始化。
kubectl get nodes 在其他节点是提示连接本地8080接口连接失败
是由于没有设置 kubeconfig 文件，kubectl 不知道连接哪个集群。所以默认连接了本地
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
containerd 的 CRI 插件未正确加载
ctr plugins list | grep cri
io.containerd.grpc.v1 cri linux/amd64 error
出现error说明是/etc/containerd/config.toml文件中的[plugins."io.containerd.grpc.v1.cri"]下的systemd_cgroup被错误设置成了true，将其改为false即可，注意[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]下的SystemdCgroup应该设为true
修改完后重启containerd即可再次尝试
ctr plugins list | grep cri
pod的字段
重要字段
NodeSelector
供用户将pod与node进行绑定的字段
apiVersion: v1 kind: Pod ..... spec: nodeSelector: disktype:ssd意味着此Pod只能调度到标签为
disktype:ssd的node节点上。Nodename
当pod被调度后，此字段被赋值，可以设置这个字段“骗过”kubernetes的调度器
HostAliases
定义Pod的host文件
apiVersion: v1 kind: Pod ..... spec: hostAliases: - ip: "10.1.2.3" hostnames: - "foo.remote" - "bar.remote"当pod启动后，
/etc/hosts文件内容里会添加两条数据10.1.2.3 foo.remote 10.1.2.3 foo.remoteshareProcessNamespace
使同一个Pod里的多个容器共享PID命名空间，可以用
ps、kill 等命令看到对方容器的进程）apiVersion: v1 kind: Pod metadata: name: sharepid-pod spec: shareProcessNamespace: true containers: - name: nginx image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/nginx:latest - name: busybox image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/busybox:latest stdin: true tty: true
stdin: true 和tty: true使busybox 容器可以交互式地运行，例如用kubectl exec 进入kubectl exec -it shared-pod -c busybox -- sh
hostNetwork、hostIPC、hostPID
共享宿主机的网络、IPC、PID 的命名空间
apiVersion: v1 kind: Pod ..... spec: hostNetwork: true hostIPC: true hostPID: true .....🪩Containers
ImagePullPolicy
定义镜像拉取策略，其值默认为Always，即每次创建Pod时都会拉取一次镜像，当镜像为nginx或者nginx:latest时，与会在pod创建时重新拉去一次镜像
Always： 每次创建Pod时都会拉取一次镜像
Never： 永远不会主动拉取景象
IfNotPresent： 当宿主机不存在该镜像时拉取
Lifecycle
Container Lifecycle Hook，在容器状态发生变化时触发的一系列“钩子”
apiVersion: v1 kind: Pod ..... spec: containers: - name : lifecycle-demo-container image: nginx lifecycle: poststart: exec: command: ["/bin/sh","-c","echo Hello"] prestop: exec: command: ["/usr/sbin/nginx" ,"-s","quit"]postStart
在容器启动后，立即执行一个指定的操作
⚠️postStart定义的操作虽然是在容器ENTRYPOINT执行之后，但是不严格保证顺序，在postStart操作之前，ENTRYPOINT可能并未结束
preStop
在容器被杀死之前执行的操作
⚠️preStop会阻塞当前容器杀死流程，当preStop里的操作执行完后，容器才会被杀死
↩
本文是原创文章，采用 CC BY-NC-ND 4.0 协议，完整转载请注明来自 自僱落葉竟痴迷
评论
匿名评论
隐私政策
你无需删除空行，直接评论以获取最佳展示效果
